JL05-20EB3B-(11)-R

Obsolete

JAE Electronics

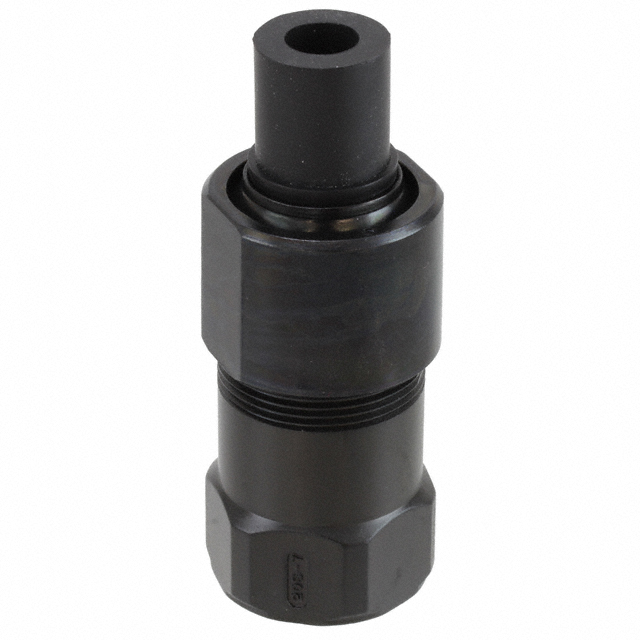

CONN BACKSH SZ20 BLK 1 1/8-18

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN BACKSH SZ20 BLK 1 1/8-18

Technical Specifications

Parameters and characteristics for this part

Specification	JL05-20EB3B-(11)-R

Cable Exit	180 °
Cable Opening [diameter]	0.787 in
Cable Opening [diameter]	20 mm
Color	Black
Diameter - Outside [diameter]	36 mm
Diameter - Outside [diameter]	1.417 in
Features	Sleeve, Bushing
For Use With/Related Products	JL05 Series Connectors
Includes	1 Compression Nut, 1 Sleeve, 2 Screws, 1 O-Ring, 2 Bushings, 1 Backshell
Ingress Protection	Waterproof
Material	Aluminum Alloy
Plating	Zinc
Shell Size - Insert	20
Thread Size	1 1/8-18 UNEF
Type	Backshell

Part	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Material	Thread Size	Color	For Use With/Related Products	Features	Plating	Ingress Protection	Includes	Type	Cable Opening [diameter]	Cable Opening [diameter]
JAE Electronics JL05-20EB3B-(13)-R	180 °	36 mm	1.417 in	20	Aluminum Alloy	1 1/8-18 UNEF-2B	Black	JL05 Series Connectors	Bushing	Zinc	Waterproof	1 Backshell 1 Compression Nut 1 O-Ring 1 Sleeve 2 Bushings 2 Screws	Backshell
JAE Electronics JL05-20EB3B-(13)-RK
JAE Electronics JL05-20EB3B-(11)-R	180 °	36 mm	1.417 in	20	Aluminum Alloy	1 1/8-18 UNEF	Black	JL05 Series Connectors	Bushing Sleeve	Zinc	Waterproof	1 Backshell 1 Compression Nut 1 O-Ring 1 Sleeve 2 Bushings 2 Screws	Backshell	0.787 in	20 mm
JAE Electronics JL05-20EB1A-R	180 °	36 mm	1.417 in	20	Aluminum Alloy	1 1/8-18 UNEF-2B	Black	JL05 Series Connectors		Zinc		1 Backshell 1 Set Screw	Backshell	1.102 in	28 mm
JAE Electronics JL05-20EB3B-(11)-RK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Black Connector Backshell 1 1/8-18 UNEF 20
