8016-0-15-15-07-27-10-0
ActiveMill-Max Manufacturing Corp.

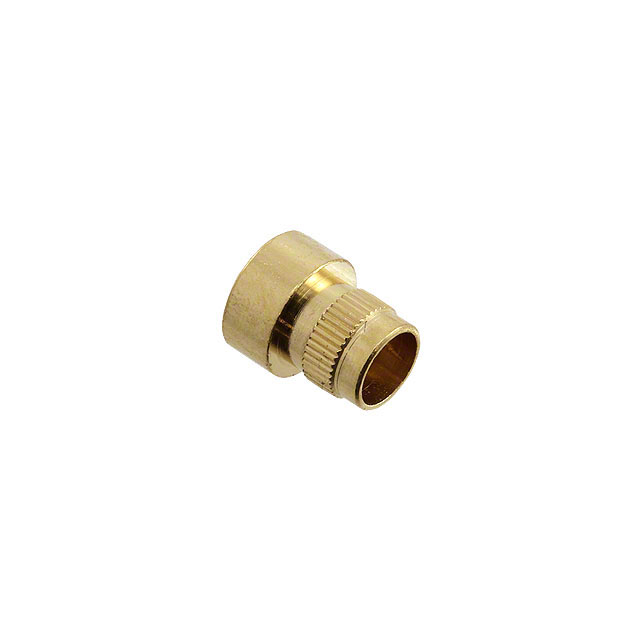

CONN PIN RCPT .065-.082 KNURL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8016-0-15-15-07-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.082 in |
| Accepts Pin Diameter [Max] [diameter] | 2.08 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.065 in |
| Accepts Pin Diameter [Min] [diameter] | 1.65 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.21 in |
| Length - Overall | 5.33 mm |
| Mounting Hole Diameter [diameter] | 3.33 mm |
| Mounting Hole Diameter [diameter] | 0.131 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 2.72 mm |
| Pin Hole Diameter [diameter] | 0.107 in |
| Socket Depth | 5.33 mm |
| Socket Depth | 0.21 in |
| Tail Type | No Tail |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.56 | |
| 10 | $ 1.19 | |||
| 25 | $ 1.07 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.71 | |||
| 2500 | $ 0.65 | |||
Description
General part information
8016-0 Series
Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) No Tail Press-Fit, Knurled
