Q-2103T000R2.5M

Active

Amphenol Custom Cable

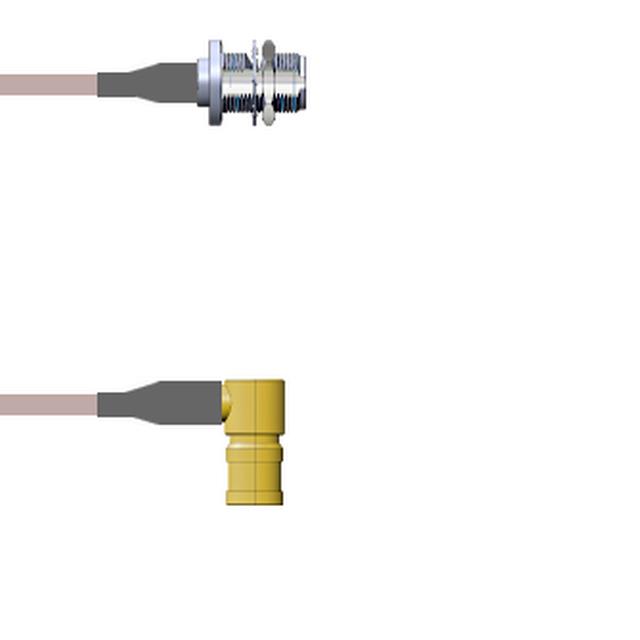

CBL ASSY SMB-NTYPE PLG-JACK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2103T000R2.5M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLG-JACK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2103T000R2.5M

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2103T0 Series

Part	Cable Type	1st Connector	1st Connector Mounting Type	Frequency - Max [Max]	Features	1st Contact Gender	Color	2nd Connector	1st Connector Mounting Feature	2nd Connector Mounting Type	Length [x]	Length [x]	2nd Connector Mounting Feature	Overall Impedance	2nd Contact Gender	Style	Length [x]	Length	Length	Length
Amphenol Custom Cable Q-2103T000R.25M	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount	9.843 "	250 mm	Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type
Amphenol Custom Cable Q-2103T000R018i	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount		457.2 mm	Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type	457.2 mm
Amphenol Custom Cable Q-2103T000R084i	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount			Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type		84 in	2.1 m	7 ft
Amphenol Custom Cable Q-2103T000R009i	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount			Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type		9 "	228.6 mm
Amphenol Custom Cable Q-2103T000R012i	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount			Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type		12 "	304.8 mm
Amphenol Custom Cable Q-2103T000R001M	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount			Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type		39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-2103T000R2.5M	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount			Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type		98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-2103T000R060i	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount			Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type		5 '	1.5 m	5 ft
Amphenol Custom Cable Q-2103T000R002M	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount			Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type		78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-2103T000R1.5M	RG-316 DB	Right Angle SMB Plug	Panel Mount	4 GHz	Shielded	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount			Bulkhead - Front Side Nut	50 Ohms	Female	SMB to N-Type		59.1 in	1.5 m	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 306.89
		25	$ 285.57
		50	$ 264.26
		100	$ 245.99
		250	$ 230.77

Description

General part information

Q-2103T0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 DB 98.4" (2.5m) 8.2'
