ATP13-2P-BM03GRY

Active

Amphenol Sine Systems Corp

2 POSITION 90DEG PCB FLANGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BoardLock Family +1

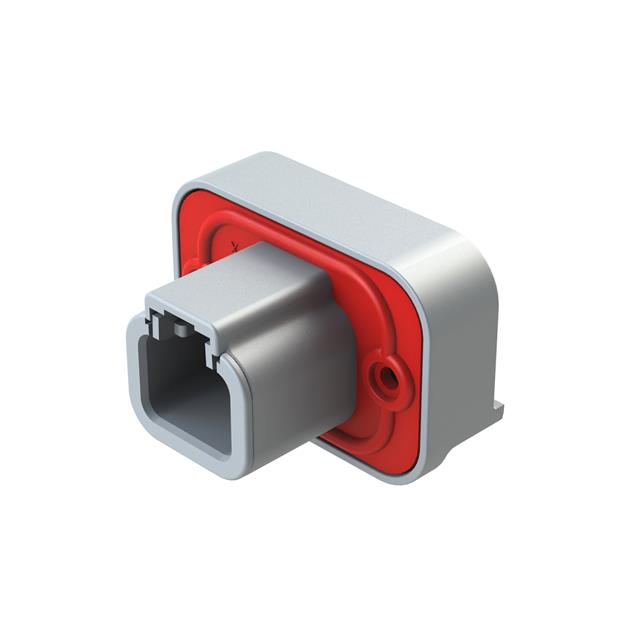

ATP13-2P-BM03GRY

Active

Amphenol Sine Systems Corp

2 POSITION 90DEG PCB FLANGE MNT

Deep-Dive with AI

DocumentsDatasheet BoardLock Family +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP13-2P-BM03GRY

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	25 A
Fastening Type	Latch Holder
Features	Sealed, Mounting Flange, Board Lock
Ingress Protection	IP67
Insulation Color	Gray
Insulation Height	1.224 in
Insulation Height	31.1 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	6.71 mm
Pitch - Mating	0.264 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

ATP13-2P Series

Part	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Connector Type	Number of Rows	Contact Type	Termination	Ingress Protection	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Material	Voltage Rating	Contact Finish - Post	Features	Shrouding	Contact Shape	Insulation Material	Number of Positions Loaded	Style	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish - Mating
Amphenol Sine Systems Corp ATP13-2P-BM03BLK	6.71 mm	0.264 in	Latch Holder	1.224 in	31.1 mm	Receptacle	1	Male Pin	Solder	IP67	25 A	0.146 in	3.7 mm	Copper Alloy	250 VDC	Tin	Board Lock Mounting Flange Sealed	Shrouded - 4 Wall	Circular	Thermoplastic	All	Board to Cable/Wire	Panel Mount Right Angle Through Hole	2	-55 °C	125 °C	Black
Amphenol Sine Systems Corp ATP13-2P-BM01GRY	6.71 mm	0.264 in	Latch Holder	1.224 in	31.1 mm	Receptacle	1	Male Pin	Solder	IP67	25 A	0.146 in	3.7 mm	Copper Alloy	250 VDC	Gold	Board Lock Mounting Flange Sealed	Shrouded - 4 Wall	Circular	Thermoplastic	All	Board to Cable/Wire	Panel Mount Right Angle Through Hole	2	-55 °C	125 °C	Gray	Gold
Amphenol Sine Systems Corp ATP13-2P-BM03GRY	6.71 mm	0.264 in	Latch Holder	1.224 in	31.1 mm	Receptacle	1	Male Pin	Solder	IP67	25 A	0.146 in	3.7 mm	Copper Alloy	250 VDC	Tin	Board Lock Mounting Flange Sealed	Shrouded - 4 Wall	Circular	Thermoplastic	All	Board to Cable/Wire	Panel Mount Right Angle Through Hole	2	-55 °C	125 °C	Gray
Amphenol Sine Systems Corp ATP13-2P-BM04BLK	6.71 mm	0.264 in	Latch Holder	1.224 in	31.1 mm	Receptacle	1	Male Pin	Solder	IP67	25 A	0.146 in	3.7 mm	Copper Alloy	250 VDC	Tin	Board Lock Mounting Flange Potting Wall Sealed	Shrouded - 4 Wall	Circular	Thermoplastic	All	Board to Cable/Wire	Panel Mount Right Angle Through Hole	2	-55 °C	125 °C	Black
Amphenol Sine Systems Corp ATP13-2P-BM01BLK	6.71 mm	0.264 in	Latch Holder	1.224 in	31.1 mm	Receptacle	1	Male Pin	Solder	IP67	25 A	0.146 in	3.7 mm	Copper Alloy	250 VDC	Gold	Board Lock Mounting Flange Sealed	Shrouded - 4 Wall	Circular	Thermoplastic	All	Board to Cable/Wire	Panel Mount Right Angle Through Hole	2	-55 °C	125 °C	Black	Gold
