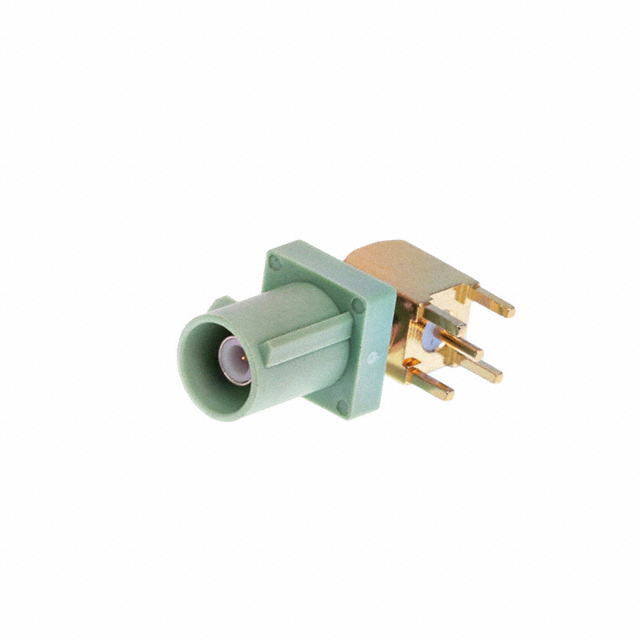

Specification	RF55-33N-T-00-50-A-SH

Body Finish	Gold, Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Fakra, SMB
Connector Type	Male Pin, Plug
Contact Termination	Solder
Fastening Type	Locking Ramp
Features	Code N
Frequency - Max	4 GHz
Housing Color	Green, Pastel
Impedance	50 Ohm
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Solder

RF55-33 Series

Part	Impedance	Frequency - Max	Mounting Type	Connector Style	Housing Color	Features	Connector Type	Center Contact Material	Shield Termination	Fastening Type	Contact Termination	Number of Ports	Body Finish	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Features - Code
Adam Tech RF55-33N-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	Green Pastel	Code N	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold
Adam Tech RF55-33E-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	Green	Code E	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold	E
Adam Tech RF55-33I-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	Beige	Code I	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold
Adam Tech RF55-33Z-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	Blue Water	Code Z	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold
Adam Tech RF55-33C-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	Blue	Code C	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold
Adam Tech RF55-33B-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	White	Code B	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold
Adam Tech RF55-33M-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	Orange Pastel	Code M	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold
Adam Tech RF55-33K-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	Curry	Code K	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold
Adam Tech RF55-33A-T-00-50-A-SH	50 Ohm	4 GHz	Right Angle Through Hole	Fakra SMB	Black	Code A	Male Pin Plug	Phosphor Bronze	Solder	Locking Ramp	Solder	1	Gold Nickel	Brass	-40 °C	85 °C	Gold	A
