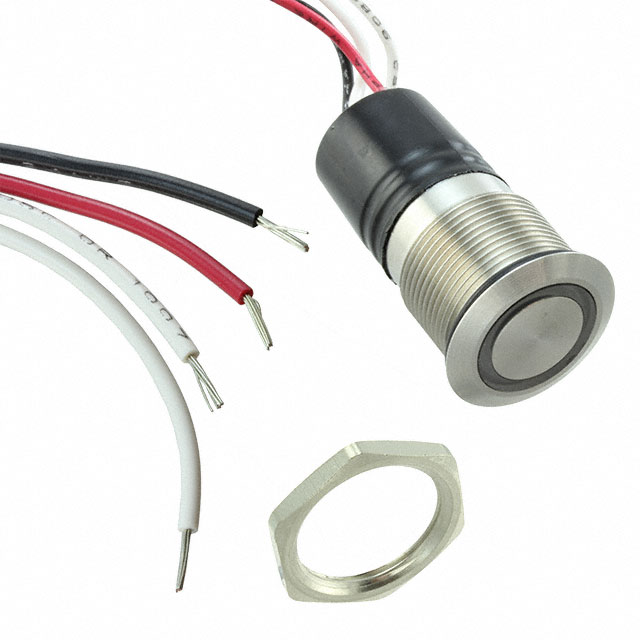

MPI001/FL/BL/24

Active

BULGIN LIMITED

SWITCH PUSH SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPI001/FL/BL/24

Active

BULGIN LIMITED

SWITCH PUSH SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPI001/FL/BL/24

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	50 mA
Electrical Life	35000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP66
Mechanical Life	750000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

MPI001 Series

Part	Illumination Type, Color	Circuit	Actuator Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Electrical Life	Features	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage Rating - DC	Switch Function	Mechanical Life	Mounting Type
BULGIN LIMITED MPI001/28/BL/12	Blue LED	SPST-NO	Button Flush Round	No Marking	19.2 mm	12 VDC	Silver	Quick Connect - 0.110" (2.8mm)	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/TERM/RD	LED Red	SPST-NO	Button Flush Round	No Marking	19.2 mm	1.85 VDC	Silver	Screw Terminal	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/TE/BL/6	Blue LED	SPST-NO	Button Flush Round	No Marking	19.2 mm	6 V	Silver	Screw Terminal	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/TE/GN/24	Green LED	SPST-NO	Button Flush Round	No Marking	19.2 mm	24 V	Silver	Screw Terminal	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/FL/AM/12	Amber LED	SPST-NO	Button Flush Round	No Marking	19.2 mm	12 VDC	Silver	Wire Leads	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/FL/RD/12	LED Red	SPST-NO	Button Flush Round	No Marking	19.2 mm	12 VDC	Silver	Wire Leads	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/TE/AM/24	Amber LED	SPST-NO	Button Flush Round	No Marking	19.2 mm	24 V	Silver	Screw Terminal	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/28/BL/6	Blue LED	SPST-NO	Button Flush Round	No Marking	19.2 mm	6 V	Silver	Quick Connect - 0.110" (2.8mm)	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/TE/GN/12	Green LED	SPST-NO	Button Flush Round	No Marking	19.2 mm	12 VDC	Silver	Screw Terminal	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front
BULGIN LIMITED MPI001/FL/BL/24	Blue LED	SPST-NO	Button Flush Round	No Marking	19.2 mm	24 V	Silver	Wire Leads	50 mA	35000 Cycles	Stainless Steel	IP66	70 °C	-30 ░C	Anti-Vandal Illuminated	24 V	Off-Mom	750000 Cycles	Panel Mount Front

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 45.68
Newark	Each	1	$ 60.38

Description

General part information

MPI001 Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
