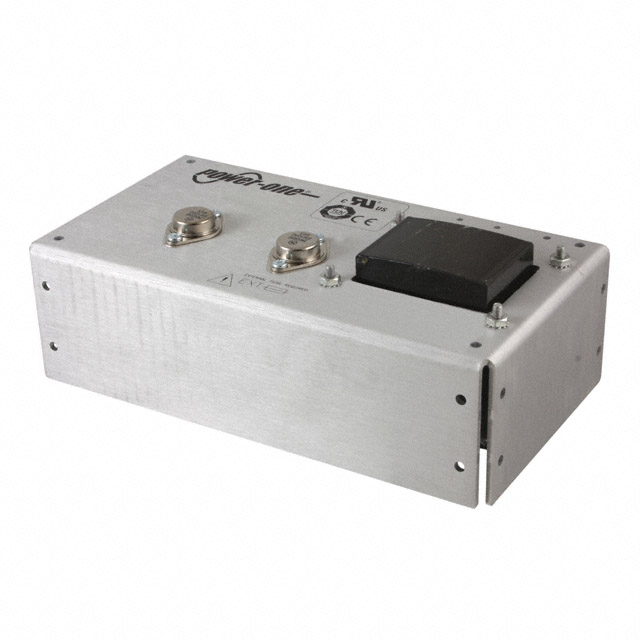

HCC15-3-AG

Active

Bel Power Solutions

AC/DC CONVERTER +/-15V 90W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER +/-15V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	HCC15-3-AG

Applications	ITE (Commercial)
Approval Agency	UL, CSA, CE
Current - Output 1	3.4 A
Current - Output 2	3.4 A
Efficiency	55 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Power (Watts)	90 W
Size / Dimension [x]	238.3 mm
Size / Dimension [x]	9.38 "
Size / Dimension [y]	123.7 mm
Size / Dimension [y]	4.87 in
Size / Dimension [z]	83.3 mm
Size / Dimension [z]	3.28 in
Standard Number	60950-1, 62368-1
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

AC/DC CONVERTER +/-15V 90W

Part	Voltage - Output 2	Standard Number	Efficiency	Power (Watts)	Voltage - Isolation	Current - Output 2	Approval Agency	Voltage - Input	Features	Number of Outputs	Mounting Type	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Applications	Voltage - Output 1
Bel Power Solutions HCC15-3-AG	-15 V	60950-1, 62368-1	55 %	90 W	4.242 kV	3.4 A	CE, CSA, UL	100 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC	Adjustable Output, Remote Sense	2	Chassis Mount	3.4 A	238.3 mm	123.7 mm	83.3 mm	4.87 in	3.28 in	9.38 "	Linear	ITE (Commercial)	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 2 Output 15V -15V 100, 120, 220, 230, 240 VAC Input
