H-58-MAGNET
ActiveLITTELFUSE
SWITCH REPLACEMENT MAGNET, FLANGE/FLAT PACK REED AND HALL EFFECT SENSORS
H-58-MAGNET
ActiveLITTELFUSE
SWITCH REPLACEMENT MAGNET, FLANGE/FLAT PACK REED AND HALL EFFECT SENSORS
Description
General part information
H-58 Series

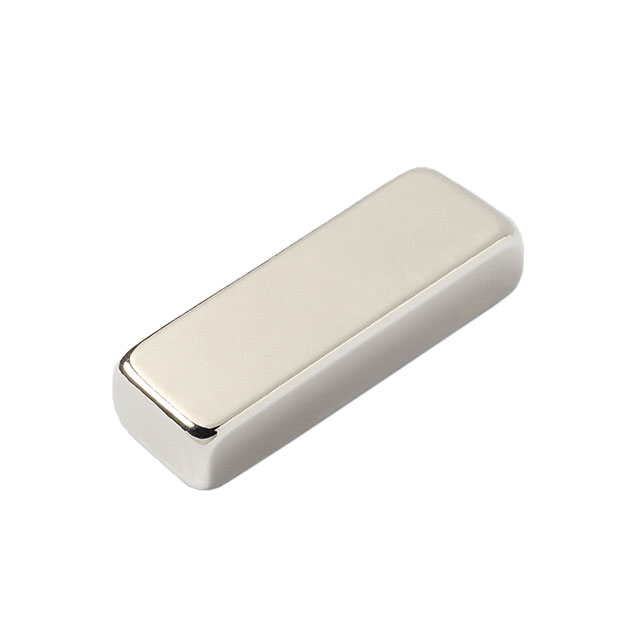

Rectangular Neodymium 35H grade magnet with overall dimensions of 21.00mm L x 7.00mm W x 4.70mm H. Recommended for use with the Flange/Flat Pack reed sensor family and Flange/Flat Pack Hall effect sensor family.
Technical Specifications
Parameters and characteristics for this part
| Specification | H-58-MAGNET |
|---|---|
| Gauss Strength | 11700 G |
| Grade | 35H |
| Magnetization | Axial |
| Material | Neodymium Iron Boron (NdFeB) |
| Operating Temperature | 120 °C |
| Shape | Rectangular |
| Size Height | 0.185 in |
| Size Length | 0.827 in |
| Size Width | 0.276 in |
