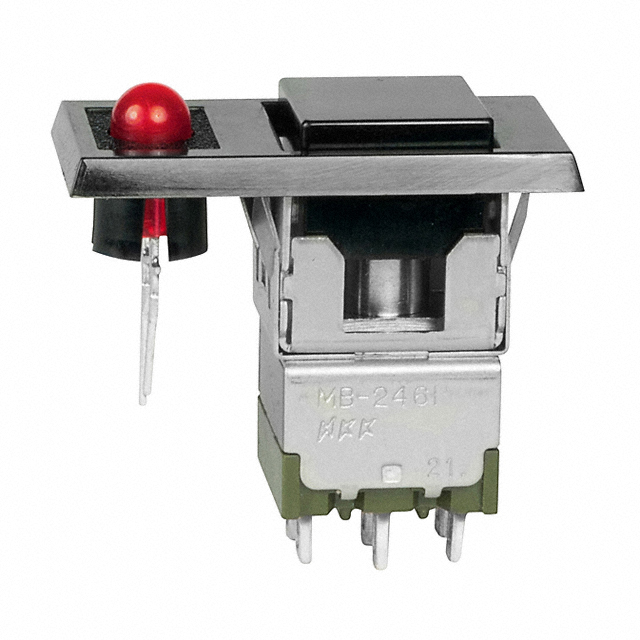

MB2461JW01-A-2A-C

Obsolete

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2461JW01-A-2A-C

Obsolete

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2461JW01-A-2A-C

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.8 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	15 mm
Panel Cutout Dimensions [y]	13.1 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V

MB2461J Series

Part	Current Rating (Amps)	Voltage Rating - AC	Type	Circuit	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Switch Function	Termination Style	Mounting Type	Mechanical Life	Actuator Type	Electrical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches MB2461JW01-C-1A	3 A	125 V	Standard	DPDT	No Marking	-30 ░C	85 °C	Red	On-Mom	Solder Lug	Panel Mount Snap-In	200000 Cycles	Button Square	25000 Steps	13.1 mm	15 mm	Epoxy Sealed Terminals
NKK Switches MB2461JW03	3 A	125 V	Standard	DPDT	No Marking	-30 ░C	85 °C		On-Mom	PC Pin	Panel Mount Snap-In	200000 Cycles	Plunger for Cap	25000 Steps	13.1 mm	15 mm	Epoxy Sealed Terminals
NKK Switches MB2461JW01-B-1B	3 A	125 V	Standard	DPDT	No Marking	-30 ░C	85 °C	White	On-Mom	Solder Lug	Panel Mount Snap-In	200000 Cycles	Button Square	25000 Steps	13.1 mm	15 mm	Epoxy Sealed Terminals
NKK Switches MB2461JW03-A-1A	3 A	125 V	Standard	DPDT	No Marking	-30 ░C	85 °C	Black	On-Mom	PC Pin	Panel Mount Snap-In	200000 Cycles	Button Square	25000 Steps	13.1 mm	15 mm	Epoxy Sealed Terminals
NKK Switches MB2461JW01	3 A	125 V	Standard	DPDT	No Marking	-30 ░C	85 °C		On-Mom	Solder Lug	Panel Mount Snap-In	200000 Cycles	Plunger for Cap	25000 Steps	13.1 mm	15 mm	Epoxy Sealed Terminals
NKK Switches MB2461JW01-A-1A	3 A	125 V	Standard	DPDT	No Marking	-30 ░C	85 °C	Black	On-Mom	Solder Lug	Panel Mount Snap-In	200000 Cycles	Button Square	25000 Steps	13.1 mm	15 mm	Epoxy Sealed Terminals
NKK Switches MB2461JW01-A-2A-C	3 A	125 V	Illuminated Standard	DPDT	No Marking	-30 ░C	85 °C	Black	On-Mom	Solder Lug	Panel Mount Snap-In	200000 Cycles	Button Square	25000 Steps	13.1 mm	15 mm	Epoxy Sealed Terminals	2.8 VDC	LED Red
NKK Switches MB2461JW03-A-1H	3 A	125 V	Standard	DPDT	No Marking	-30 ░C	85 °C	Black	On-Mom	PC Pin	Panel Mount Snap-In	200000 Cycles	Button Square	25000 Steps	13.1 mm	15 mm	Epoxy Sealed Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.00
		10	$ 11.75
		25	$ 11.18
		50	$ 10.62
		100	$ 10.24

Description

General part information

MB2461J Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
