M3CWK-6006R

Active

IDC CABLE - MKC60K/MC60M/MPL60K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

M3CWK-6006R

Active

IDC CABLE - MKC60K/MC60M/MPL60K

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.12
		10	$ 24.63
		25	$ 23.56
		50	$ 22.80
		100	$ 22.04
		250	$ 20.83

Description

General part information

M3CWK Series

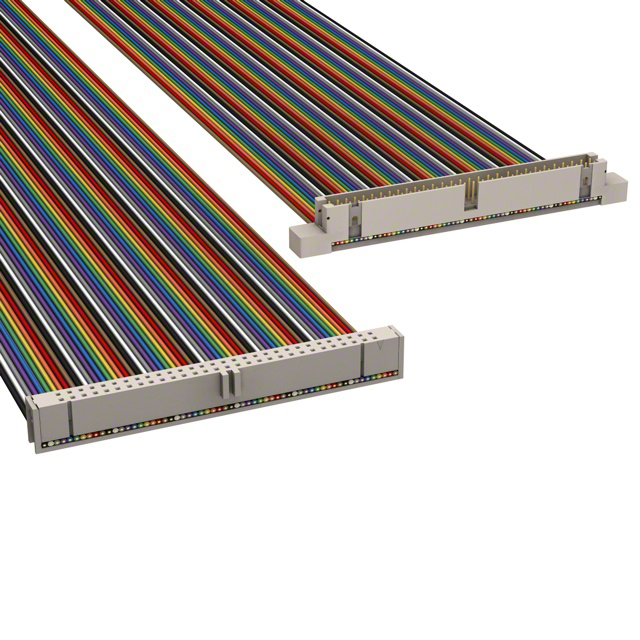

60 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

4600 Series Drawing

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3CWK-6006R	M3CWK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key (Socket), Polarizing Key (Plug), Flange	Polarizing Key (Socket), Polarizing Key (Plug), Flange
Length	152.4 mm	1.52 - 508 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.5 - 3.34 ft
Length	-	1.02 - 914.4 mm
Length	-	1.67 - 5 ft
Number of Positions	60	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded
