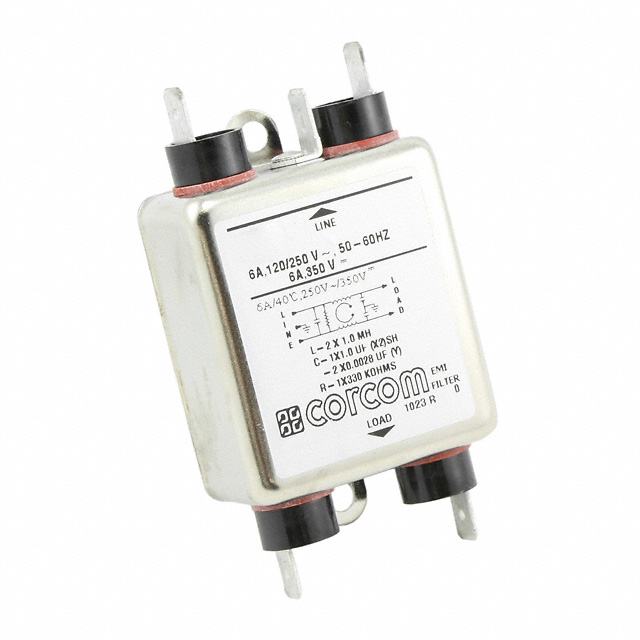

1-1609034-1

Active

TE Connectivity Corcom Filters

LINE FILTER 250VDC/VAC 6A CHAS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 250VDC/VAC 6A CHAS

Technical Specifications

Parameters and characteristics commom to parts in this series

LINE FILTER 250VDC/VAC 10A CHAS

Part	Configuration	Approval Agency	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Filter Type	Voltage - Rated AC	Mounting Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated DC	Current	Inductance
TE Connectivity Corcom Filters 1-1609034-4	Single Stage	CSA, UR, VDE	60 Hz	50 Hz	General Purpose	Single Phase	250 V	Chassis Mount	Threaded Post (8-32)	-10 °C	40 °C	250 V	10 A
TE Connectivity Corcom Filters 1-1609034-1	Single Stage	CSA, UR, VDE	60 Hz	50 Hz	General Purpose	Single Phase	250 V	Chassis Mount	Quick Connect	-10 °C	40 °C	250 V	6 A	1 mH
TE Connectivity Corcom Filters 1-1609034-6	Single Stage	CSA, UR, VDE	60 Hz	50 Hz	General Purpose	Single Phase	250 V	Chassis Mount	Threaded Post (8-32)	-10 °C	40 °C	250 V	10 A
TE Connectivity Corcom Filters 2-1609034-1	Single Stage	CSA, UR, VDE	60 Hz	50 Hz	General Purpose	Single Phase	250 V	Chassis Mount	Threaded Post (8-32)	-10 °C	40 °C	250 V	30 A	900 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 6 A 250V 250V 50/60Hz Single Stage Quick Connect
