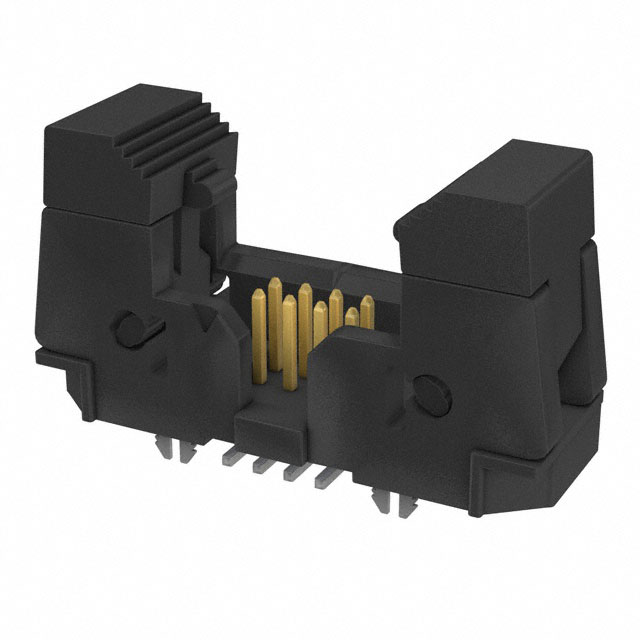

EHF-104-01-LM-D-SM-LC

Active

Samtec Inc.

CONN HEADER SMD 8POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

EHF-104-01-LM-D-SM-LC

Active

Samtec Inc.

CONN HEADER SMD 8POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-104-01-LM-D-SM-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Board Lock, Keying Slot
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-104 Series

Part	Number of Rows	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Style	Features	Contact Type	Contact Finish - Mating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Insulation Color	Current Rating (Amps)	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions	Mounting Type	Contact Length - Post	Contact Length - Post	Connector Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height	Insulation Height
Samtec Inc. EHF-104-01-F-D	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Keying Slot	Male Pin	Gold	Tin	0.35 in	8.89 mm	0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Through Hole	0.107 "	2.71 mm	Header	Phosphor Bronze	3 µin	0.076 µm	Solder	Square	-55 °C	125 °C	All	8.25 mm	0.325 in
Samtec Inc. EHF-104-01-L-D-SM-P	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Keying Slot Pick and Place	Male Pin	Gold	Tin			0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Surface Mount			Header	Phosphor Bronze	10 çin	0.25 çm	Solder	Square	-55 °C	125 °C	All	8.25 mm	0.325 in
Samtec Inc. EHF-104-01-L-D-RA	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Keying Slot	Male Pin	Gold	Tin			0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Through Hole Right Angle	0.09 "	2.29 mm	Header	Phosphor Bronze	10 çin	0.25 çm	Solder	Square	-55 °C	125 °C	All
Samtec Inc. EHF-104-01-LM-D-SM-LC	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Board Lock Keying Slot	Male Pin	Gold	Tin			0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Surface Mount			Header	Phosphor Bronze	10 çin	0.25 çm	Solder	Square	-55 °C	125 °C	All	8.25 mm	0.325 in
Samtec Inc. EHF-104-01-L-D-SM-K-TR	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Keying Slot Pick and Place	Male Pin	Gold	Tin			0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Surface Mount			Header	Phosphor Bronze	10 çin	0.25 çm	Solder	Square	-55 °C	125 °C	All	8.25 mm	0.325 in
Samtec Inc. EHF-104-01-F-D-SM-P	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Keying Slot Pick and Place	Male Pin	Gold	Tin			0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Surface Mount			Header	Phosphor Bronze	3 µin	0.076 µm	Solder	Square	-55 °C	125 °C	All	8.25 mm	0.325 in
Samtec Inc. EHF-104-01-L-D-SM-LC-P	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Board Lock Keying Slot Pick and Place	Male Pin	Gold	Tin			0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Surface Mount			Header	Phosphor Bronze	10 çin	0.25 çm	Solder	Square	-55 °C	125 °C	All	8.25 mm	0.325 in
Samtec Inc. EHF-104-01-F-D-SM-LC	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Board Lock Keying Slot	Male Pin	Gold	Tin			0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Surface Mount			Header	Phosphor Bronze	3 µin	0.076 µm	Solder	Square	-55 °C	125 °C	All	8.25 mm	0.325 in
Samtec Inc. EHF-104-01-L-D-SM	2	Latch Lock/Eject Hooks	0.05 in	1.27 mm	Board to Cable/Wire	Keying Slot	Male Pin	Gold	Tin			0.05 in	1.27 mm	Black	1.75 A	Shrouded - 4 Wall	3.05 mm	0.12 in	8	Surface Mount			Header	Phosphor Bronze	10 çin	0.25 çm	Solder	Square	-55 °C	125 °C	All	8.25 mm	0.325 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EHF-104 Series

Connector Header Surface Mount 8 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
