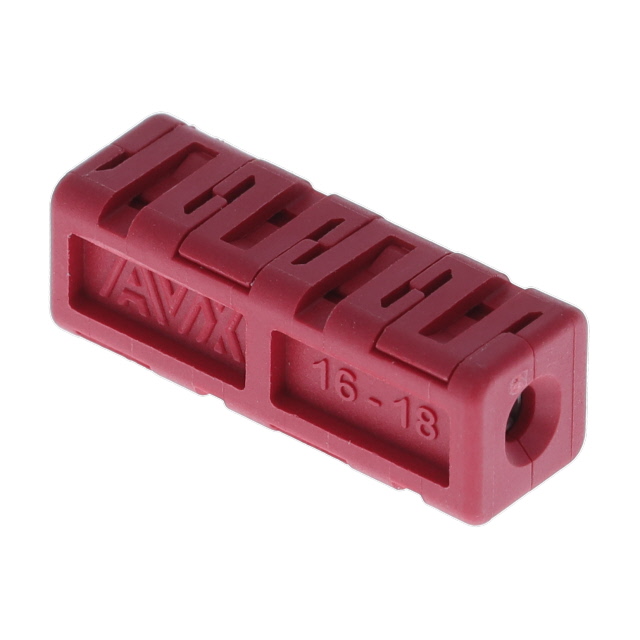

009286001316506

Active

Kyocera AVX

CONN JUNCT 1POS POKE-IN 16-18AWG

Search across all available documentation for this part.

Active

Kyocera AVX

CONN JUNCT 1POS POKE-IN 16-18AWG

Technical Specifications

Parameters and characteristics for this part

Part	Wire Type	Connector Type	Number of Positions	Contact Type	Color	Contact Finish	Features	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Cable Termination	Number of Rows	Wire Gauge
Kyocera AVX 009286008021906	Discrete	Junction Box	8	Spring	White	Tin	Feed Through	26 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
Kyocera AVX 009286001314906	Discrete	Junction Box	1	Spring	White	Tin				Free Hanging (In-Line)	Poke-In	1	13.5 AWG
Kyocera AVX 009286001314206	Discrete	Junction Box	1	Spring	Brown	Tin	Feed Through			Free Hanging (In-Line)	Poke-In	1	13.5 AWG
Kyocera AVX 009286002203906	Discrete	Junction Box	2	Spring	White	Tin	Feed Through	24 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
Kyocera AVX 009286001312706	Discrete	Junction Box	1	Spring		Tin	Feed Through			Free Hanging (In-Line)	Poke-In	1	12 AWG
Kyocera AVX 009286008121506	Discrete	Junction Box	8	Spring	Red	Tin	Feed Through	26 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
Kyocera AVX 009286001314406	Discrete	Junction Box	1	Spring	Yellow	Tin	Feed Through			Free Hanging (In-Line)	Poke-In	1	13.5 AWG
Kyocera AVX 009286002021906	Discrete	Junction Box	2	Spring	White	Tin	Feed Through	26 AWG	17.5 AWG	Free Hanging (In-Line)	Poke-In	1
Kyocera AVX 009286001316506	Discrete	Junction Box	1	Spring	Red	Tin	Feed Through	18 AWG	16 AWG	Free Hanging (In-Line)	Poke-In	1
Kyocera AVX 009286001314706	Discrete	Junction Box	1	Spring		Tin	Feed Through			Free Hanging (In-Line)	Poke-In	1	13.5 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Rectangular Junction Box Connector Poke-In Tin 16-18 AWG
