387-040 Series

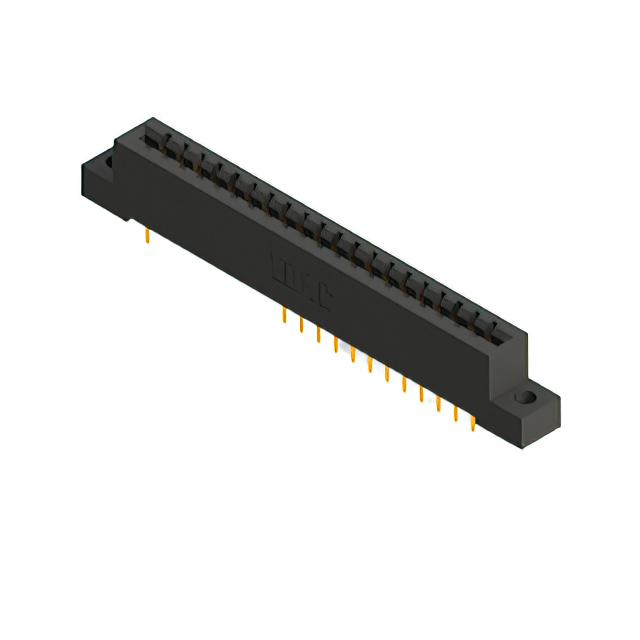

40 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	387-040-541-204

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	40, 20
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

387-040 Series

...

Part	Card Type	Termination	Pitch	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Flange Feature	Color	Mounting Type	Number of Positions	Contact Finish Thickness	Read Out	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Contact Type	Gender	Number of Rows	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 387-040-520-868	Dual Edge Non Specified	Solder	0.156 in	Copper Alloy	-40 °C	105 °C	4-40 Threaded Insert Top Mount Opening	Black	Through Hole	20 40	10 Ąin	Dual	0.054 in	0.07 in	Gold	Cantilever	Female	2	Polyester Thermoplastic	2 rows
EDAC Inc. 387-040-520-168	Non Specified Single Edge	Solder	0.156 in	Copper Alloy	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Black	Through Hole	40	10 Ąin	Single	0.054 in	0.07 in	Gold	Cantilever	Female	1	Polyester Thermoplastic	1 rows
EDAC Inc. 387-040-523-807	Dual Edge Non Specified	Solder	0.156 in	Copper Alloy	-40 °C	105 °C	M3 Threaded Insert Top Mount Opening	Black	Through Hole	20 40	10 Ąin	Dual	0.054 in	0.07 in	Gold	Cantilever	Female	2	Polyester Thermoplastic	2 rows
EDAC Inc. 387-040-544-258	Dual Edge Non Specified	Wire Wrap	0.156 in	Copper Alloy	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Black	Through Hole	20 40	10 Ąin	Dual	0.054 in	0.07 in	Gold	Cantilever	Female	2	Polyester Thermoplastic	2 rows
EDAC Inc. 387-040-544-208	Dual Edge Non Specified	Wire Wrap	0.156 in	Copper Alloy	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Black	Through Hole	20 40	10 Ąin	Dual	0.054 in	0.07 in	Gold	Cantilever	Female	2	Polyester Thermoplastic	2 rows
EDAC Inc. 387-040-524-678	Non Specified Single Edge	Solder	0.156 in	Copper Alloy	-40 °C	105 °C	4-40 Threaded Insert Top Mount Opening	Black	Through Hole	40	10 Ąin	Single	0.054 in	0.07 in	Gold	Cantilever	Female	1	Polyester Thermoplastic	1 rows
EDAC Inc. 387-040-521-112	Non Specified Single Edge	Solder	0.156 in	Copper Alloy	-40 °C	105 °C	Flush Mount Side Opening Unthreaded	Black	Through Hole	40	10 Ąin	Single	0.054 in	0.07 in	Gold	Cantilever	Female	1	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 387-040-523-168	Non Specified Single Edge	Solder	0.156 in	Copper Alloy	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Black	Through Hole	40	10 Ąin	Single	0.054 in	0.07 in	Gold	Cantilever	Female	1	Polyester Thermoplastic	1 rows
EDAC Inc. 387-040-544-858	Dual Edge Non Specified	Wire Wrap	0.156 in	Copper Alloy	-40 °C	105 °C	4-40 Threaded Insert Top Mount Opening	Black	Through Hole	20 40	10 Ąin	Dual	0.054 in	0.07 in	Gold	Cantilever	Female	2	Polyester Thermoplastic	2 rows
EDAC Inc. 387-040-541-204	Dual Edge Non Specified	Wire Wrap	0.156 in	Copper Alloy	-40 °C	105 °C	Flush Mount Top Opening Unthreaded	Black	Through Hole	20 40	10 Ąin	Dual	0.054 in	0.07 in	Gold	Cantilever	Female	2	Polyester Thermoplastic	2 rows	0.156 in
