Technical Specifications
Parameters and characteristics for this part
| Specification | CLT01-38SQ7-TR |
|---|---|
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |

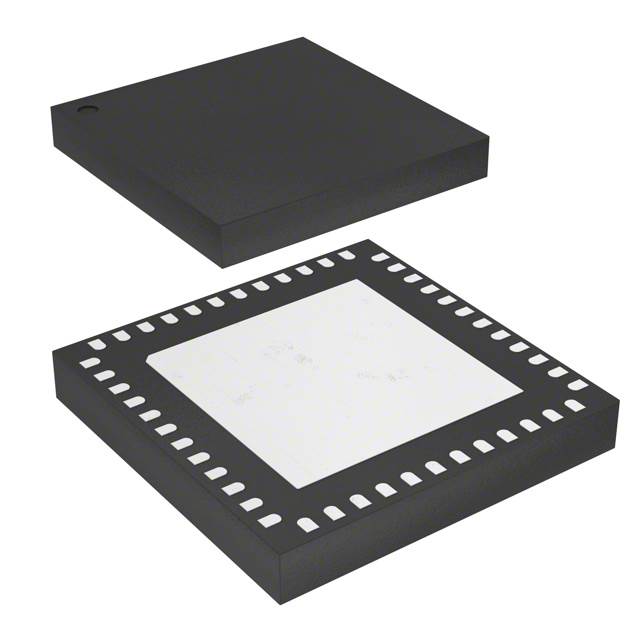

| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Technology | Mixed Technology |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 2.24 | |
| 10 | $ 2.10 | |||
| 25 | $ 2.02 | |||
| 100 | $ 1.93 | |||
| 500 | $ 1.85 | |||
| 1000 | $ 1.80 | |||
| Digikey | Cut Tape (CT) | 1 | $ 2.97 | |
| 10 | $ 2.50 | |||
| 100 | $ 2.02 | |||
| 500 | $ 1.80 | |||
| 1000 | $ 1.54 | |||
| Digi-Reel® | 1 | $ 2.97 | ||
| 10 | $ 2.50 | |||
| 100 | $ 2.02 | |||
| 500 | $ 1.80 | |||
| 1000 | $ 1.54 | |||
| Tape & Reel (TR) | 2500 | $ 1.39 | ||
| Newark | Each | 1 | $ 3.38 | |
| 10 | $ 2.35 | |||
| 25 | $ 2.33 | |||
| 50 | $ 2.31 | |||
| 100 | $ 1.72 | |||
| 250 | $ 1.58 | |||
| 500 | $ 1.44 | |||
Description
General part information
CLT01-38SQ7 Series
The CLT01 series is an octal industrial digital input IC, which drastically reduces the power dissipation of the digital input modules. Its current-sinking inputs can be configured for type 1, type 2, or type 3 inputs as per IEC 61131-2 with few external components.
The CLT01 series includes a serial interface, which translates, conditions, and serializes the data to CMOS-compatible signals through SPI. Combining its daisy-chaining capability with its accurate current limitation, the CLT01 series enhances the I/O module’s density by cutting the power dissipation and reducing the number of optocouplers.
The CLT01 series can be evaluated thanks to the STEVAL-IFP031V1 evaluation board. For detailed application guidelines, refer to the AN4625.
