WLB32ZC285PBQM

Active

BANNER ENGINEERING

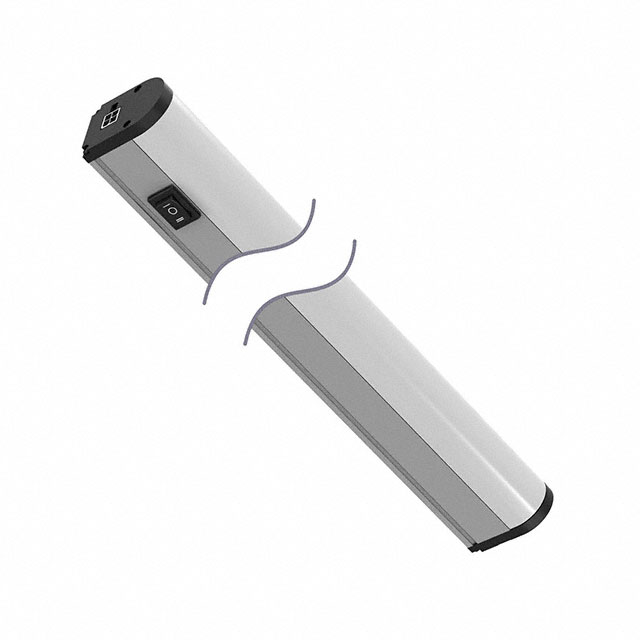

LED WORK LIGHT, 298MM, 264VAC, 3PIN QD

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LED WORK LIGHT, 298MM, 264VAC, 3PIN QD

Technical Specifications

Parameters and characteristics for this part

Specification	WLB32ZC285PBQM

Approval Agency	cULus, CE
Features	High/Low/Off Switching, Cascadable
Housing Material	Aluminum (Al)
Illumination Color	White, Cool
Ingress Protection	IP50
Lens Type	Tubular, Diffused
Luminous Flux	750 lm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Profile (W x H) [x]	32 mm
Profile (W x H) [x]	1.26 in
Profile (W x H) [y]	1.81 in
Profile (W x H) [y]	46 mm
Rated Life	50000 Hours
Termination Style	Connector
Voltage - Supply [Max]	264 VAC
Voltage - Supply [Min]	90 VAC

Part	Illumination Color	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Features	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Termination Style	Approval Agency	Voltage - Supply [Max]	Voltage - Supply [Min]	Luminous Flux	Lens Type	Ingress Protection	Rated Life
BANNER ENGINEERING WLB32ZC285MQM	Cool White	-40 °C	70 °C	Aluminum (Al)	Cascadable Motion Detection	32 mm	1.81 in	1.26 in	46 mm	Connector	CE cULus	264 VAC	90 VAC	750 lm	Diffused Tubular	IP50	50000 Hours
BANNER ENGINEERING WLB32ZC285PBQMC	Cool White	-40 °C	70 °C	Aluminum (Al)	Cascadable High/Low/Off Switching	32 mm	1.81 in	1.26 in	46 mm	Connector	CE cULus	264 VAC	90 VAC	750 lm	Diffused Tubular	IP50	50000 Hours
BANNER ENGINEERING WLB32ZC285EPBQM	Cool White	-40 °C	70 °C	Aluminum (Al)	Cascadable High/Low/Off Switching Shield	32 mm	1.89 in	1.26 in	48 mm	Connector	CE cULus	264 VAC	90 VAC	750 lm	Diffused Tubular	IP50	50000 Hours
BANNER ENGINEERING WLB32ZC285PBQMB	Cool White	-40 °C	70 °C	Aluminum (Al)	Cascadable High/Low/Off Switching	32 mm	1.81 in	1.26 in	46 mm	Connector	CE cULus	264 VAC	90 VAC	750 lm	Diffused Tubular	IP50	50000 Hours
BANNER ENGINEERING WLB32ZC285MQMB	Cool White	-40 °C	70 °C	Aluminum (Al)	Cascadable Motion Detection	32 mm	1.81 in	1.26 in	46 mm	Connector	CE cULus	264 VAC	90 VAC	750 lm	Diffused Tubular	IP50	50000 Hours
BANNER ENGINEERING WLB32ZC285PBQM	Cool White	-40 °C	70 °C	Aluminum (Al)	Cascadable High/Low/Off Switching	32 mm	1.81 in	1.26 in	46 mm	Connector	CE cULus	264 VAC	90 VAC	750 lm	Diffused Tubular	IP50	50000 Hours

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED WORK LIGHT, 298MM, 264VAC, 3PIN QD

Technical documentation and resources
