1345-0.5-6

Active

3M (TC)

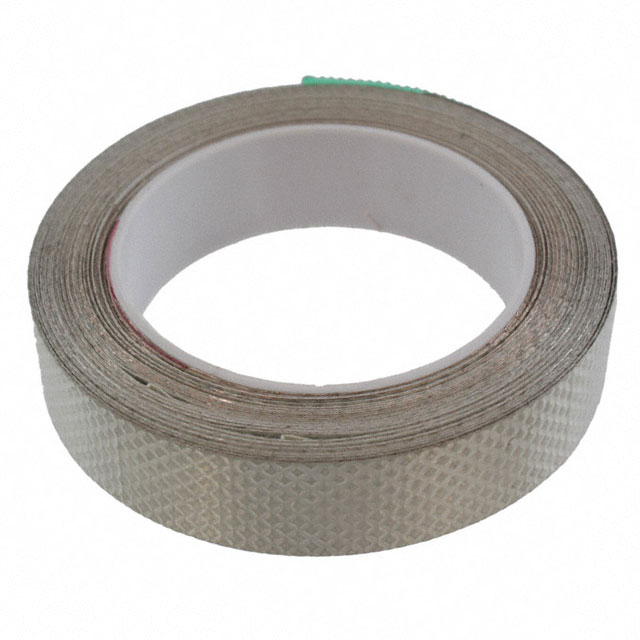

RF EMI SHIELDING TAPE 18' X 0.5"

Search across all available documentation for this part.

Active

3M (TC)

RF EMI SHIELDING TAPE 18' X 0.5"

Technical Specifications

Parameters and characteristics for this part

Specification	1345-0.5-6

Adhesive	Conductive, Single Sided
Length	5.5 m
Length	18 '
Material	Embossed Tin-Plated Copper Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall [custom]	0.004 "
Thickness - Overall [custom]	0.1 mm
Type	Shielding Tape

Part	Type	Length	Length	Material	Adhesive	Thickness - Overall	Thickness - Overall	Shelf Life Start	Shelf Life	Thickness - Overall [custom]	Thickness - Overall [custom]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]
3M (TC) 1194-0.5-6	Shielding Tape	5.5 m	18 '	Copper Foil	Non-Conductive Single Sided	0.003 "	0.07 mm
3M (TC) 1245-0.5-6	Shielding Tape	5.5 m	18 '	Embossed Copper Foil	Non-Conductive Single Sided			Date of Manufacture	60 Months	0.004 "	0.1 mm	27 °C 80 °F	10 °C
3M (TC) 1345-0.5-6	Shielding Tape	5.5 m	18 '	Embossed Tin-Plated Copper Foil	Conductive Single Sided			Date of Manufacture	60 Months	0.004 "	0.1 mm	27 °C 80 °F	10 °C	-40 °C	130 °C
3M (TC) 1183-0.5-6	Shielding Tape	5.5 m	18 '	Copper Foil	Conductive Double Sided	0.004 in	0.09 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Tape 1345 Embossed Tin-Plated Copper Foil Conductive, Single Sided 0.500" (12.70mm) X 18.000' (5.50m) X 0.004" (0.10mm)
