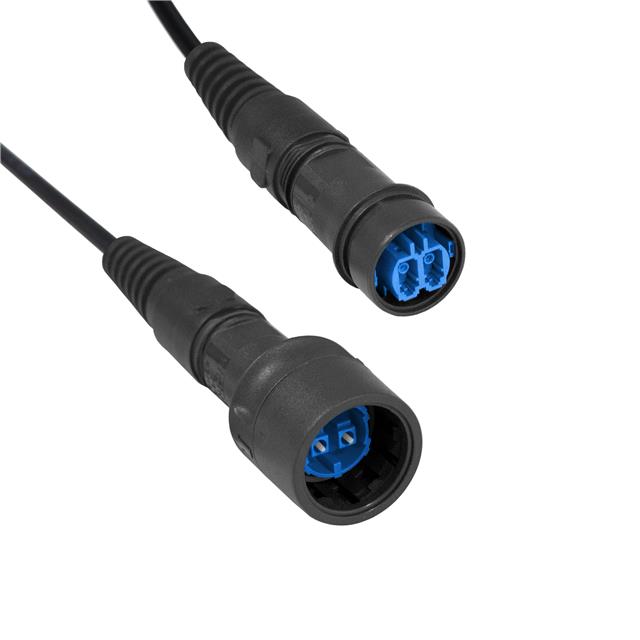

PXF6055CAH
ActiveBULGIN LIMITED
FIBRE CABLE, LC DUPLEX-LC DUPLEX, SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
PXF6055CAH
ActiveBULGIN LIMITED
FIBRE CABLE, LC DUPLEX-LC DUPLEX, SM
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | PXF6055CAH |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Bend Radius [radius] | 10 mm |
| Cable Diameter [diameter] | 2 mm |
| Cable Diameter [diameter] | 0.08 in |
| Cable Type | Buffered Fiber |
| Color - Cable | Yellow |
| Color - Connectors | Aqua |
| Features | IP66, IP68, IP69K, Low Smoke |
| Insertion Loss | 0.2 dB |
| Length - Overall [x] | 200 m |
| Length - Overall [x] | 656.2 ' |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Ratings | LSZH |
| Type | Singlemode, Duplex, OS1 |
PXF6055 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Length - Overall | Length - Overall | 2nd Connector | Features | Cable Diameter [diameter] | Cable Diameter [diameter] | 1st Connector | Bend Radius [radius] | Cable Type | Type | Fiber Type | Ratings | Color - Connectors | Length - Overall [x] | Length - Overall [x] | Color - Cable | Jacket (Insulation) Material | Bend Radius | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 70 °C | -25 °C | 1476.4 ft | 450 m | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | 10 mm | Buffered Fiber | Duplex Multimode OM3 | 50/125 | LSZH | Aqua | ||||||
BULGIN LIMITED | 70 °C | -25 °C | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | Buffered Fiber | Duplex Multimode OM1 | 62.5/125 | Aqua | 300 m | 984.3 ft | Orange | Poly-Vinyl Chloride (PVC) | 30 mm | |||||
BULGIN LIMITED | 70 °C | -25 °C | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | 10 mm | Buffered Fiber | Duplex Multimode OM3 | 50/125 | LSZH | Aqua | 300 m | 984.3 ft | ||||||
BULGIN LIMITED | 70 °C | -25 °C | 328.1 ' | 100 m | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | 10 mm | Buffered Fiber | Duplex Multimode OM3 | 50/125 | LSZH | Aqua | ||||||
BULGIN LIMITED | 70 °C | -25 °C | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | Buffered Fiber | Duplex Multimode OM1 | 62.5/125 | Aqua | 25 m | 82 ft | Orange | Poly-Vinyl Chloride (PVC) | 30 mm | |||||
BULGIN LIMITED | 70 °C | -25 °C | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | Buffered Fiber | Duplex Multimode OM1 | 62.5/125 | Aqua | 150 m | 492.1 ' | Orange | Poly-Vinyl Chloride (PVC) | 30 mm | |||||
BULGIN LIMITED | 70 °C | -25 °C | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | 10 mm | Buffered Fiber | Duplex OS1 Singlemode | LSZH | Aqua | 200 m | 656.2 ' | Yellow | 0.2 dB | |||||
BULGIN LIMITED | 70 °C | -25 °C | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | 10 mm | Buffered Fiber | Duplex Multimode OM3 | 50/125 | LSZH | Aqua | 150 m | 492.1 ' | ||||||
BULGIN LIMITED | 70 °C | -25 °C | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | 10 mm | Buffered Fiber | Duplex Multimode OM3 | 50/125 | LSZH | Aqua | 15 m | 49.2 ' | ||||||
BULGIN LIMITED | 70 °C | -25 °C | LC Duplex | IP66 IP68 IP69K Low Smoke | 2 mm | 0.08 in | LC Duplex | 10 mm | Buffered Fiber | Duplex Multimode OM3 | 50/125 | LSZH | Aqua | 25 m | 82 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PXF6055 Series
Cable Fiber Optic LC Duplex To LC Duplex 656.2' (200.0m)
