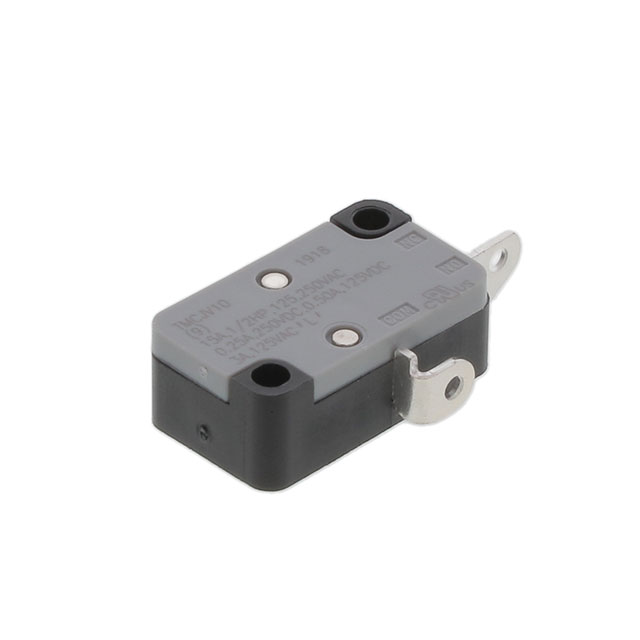

TMCJG6VP0010Y

Active

LITTELFUSE

BASIC / SNAP ACTION SWITCHES SWITCH SNAP

Search across all available documentation for this part.

Active

LITTELFUSE

BASIC / SNAP ACTION SWITCHES SWITCH SNAP

Technical Specifications

Parameters and characteristics for this part

Basic / Snap Action Switches

Part	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Voltage Rating - DC	Overtravel	Overtravel	Differential Travel	Differential Travel	Voltage Rating - AC	Pretravel	Pretravel	Current Rating (Amps)	Termination Style	Electrical Life	Release Force	Switch Function	Circuit	Mounting Type	Operating Position	Operating Position
LITTELFUSE TMCJG6VP0010Y	150 gf	-55 °C	150 °C	Round (Pin Plunger)	125 VDC	0.035 "	0.9 mm	0.013 in	0.33 mm	125 V	1.4 mm	0.055 in	15 A, 500 mA	Solder Lug	150000 Cycles	60 gf	Off-Mom	SPST-NO	Chassis Mount	0.579 in	14.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Basic / Snap Action Switches
