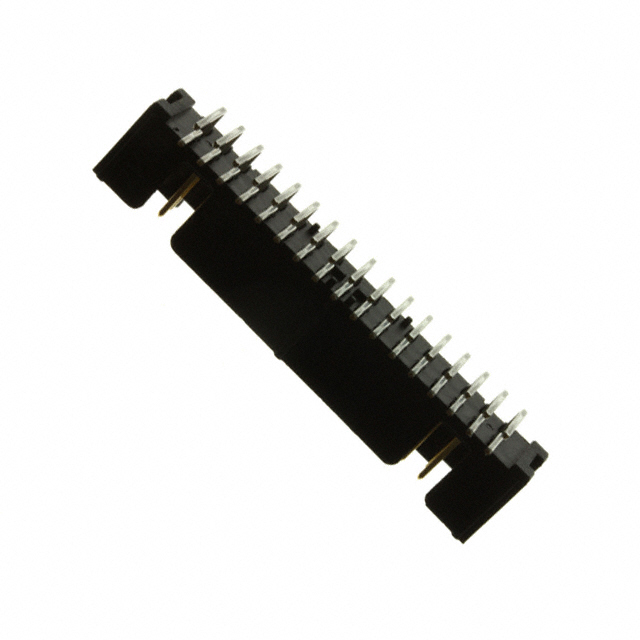

D2534-5002-AR

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 34 CONTACTS, THROUGH HOLE RIGHT ANGLE

Search across all available documentation for this part.

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 34 CONTACTS, THROUGH HOLE RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Specification	D2534-5002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.338 in
Insulation Height	8.59 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Positions Loaded	Number of Rows	Features	Material Flammability Rating	Number of Positions	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Shape	Current Rating (Amps)	Contact Material	Style	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Type	Insulation Color	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]
3M (TC) D2534-5002-AR	10 çin	0.25 çm	1 çm	39.4 çin	Solder	All	2	Keying Slot	UL94 V-0	34	Header	Through Hole Right Angle	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	105 ░C	-55 °C	Shrouded - 4 Wall	2.84 mm	0.112 in	Push-Pull	Square	1.75 A	Brass	Board to Cable/Wire	0.338 in	8.59 mm	2.54 mm	0.1 in	Gold	Male Pin	Black	Tin
3M (TC) D2534-6V0C-AR-WF	10 çin	0.25 çm	1 çm	39.4 çin	Solder	All	2	Keying Slot Pick and Place	UL94 V-0	34	Header	Surface Mount	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	105 ░C	-55 °C	Shrouded - 4 Wall			Push-Pull	Square	1.75 A	Brass	Board to Cable/Wire			2.54 mm	0.1 in	Gold	Male Pin	Black	Tin	9.91 mm	0.39 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
