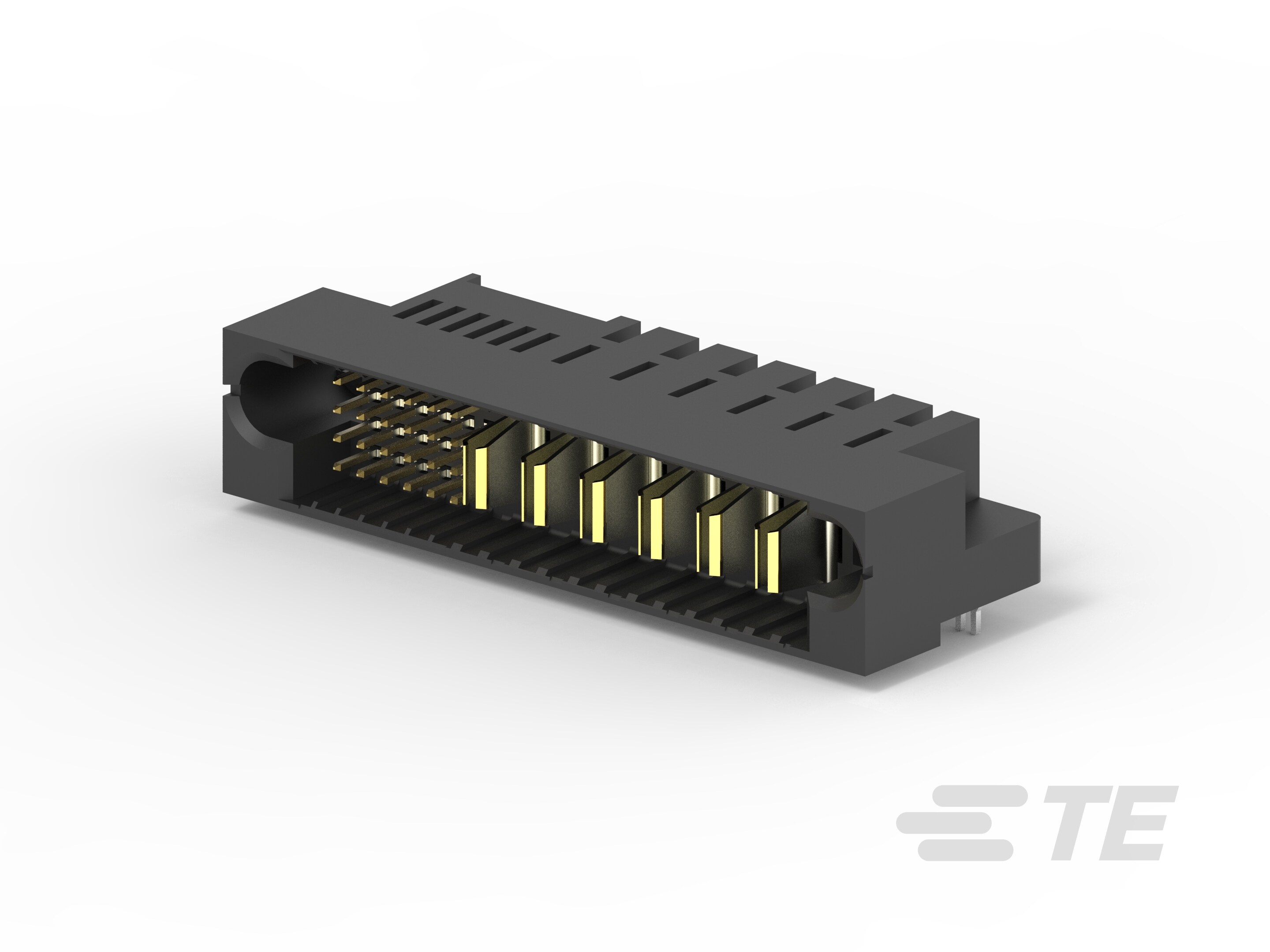

Specification	6600120-2

Color	Black
Connector Style	Multi-Beam
Connector Type	Blades, Male Pins, Header
Contact Finish	Gold
Features	Mating Guide, Board Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Pitch	0.1 in
Power Contacts (Typical)	6
Signal Contacts (Typical)	24
Termination	Solder

6600120 Series

Part	Termination	Mounting Type	Number of Rows	Number of Positions	Features	Connector Style	Power Contacts (Typical)	Signal Contacts (Typical)	Number of Positions Loaded	Connector Type	Color	Contact Finish	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating
TE Connectivity AMP Connectors 6600120-2	Solder	Right Angle Through Hole	4	30	Board Lock Mating Guide	Multi-Beam	6	24	All	Blades Header Male Pins	Black	Gold	0.1 in	-20 °C	105 °C	UL94 V-0
