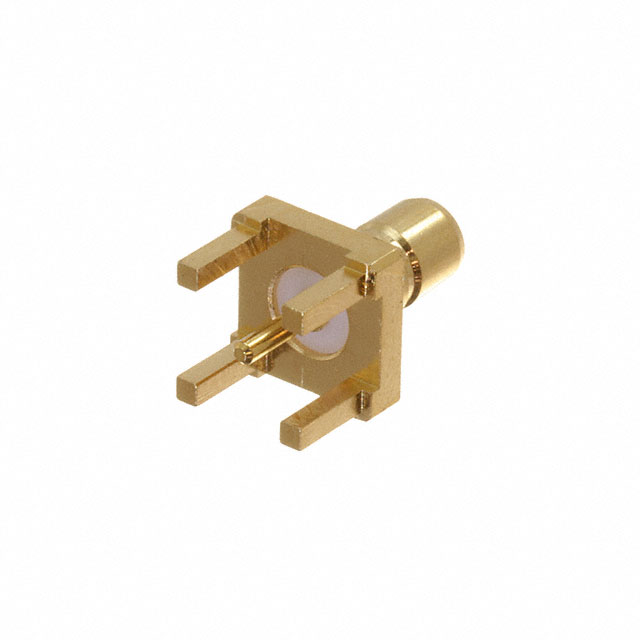

RF3-05-T-00-50-G - RF3-05-T-00-50-G

RF3-05-T-00-50-G

Active
Adam Tech

CONN SMB 0HZ TO 8GHZ 50OHM SOLDER ST THRU-HOLE RCP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications
RF3-05-T-00-50-G - RF3-05-T-00-50-G

RF3-05-T-00-50-G

Active
Adam Tech

CONN SMB 0HZ TO 8GHZ 50OHM SOLDER ST THRU-HOLE RCP GOLD

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Technical Specifications

Parameters and characteristics for this part

SpecificationRF3-05-T-00-50-G
Body FinishGold
Body MaterialBrass
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMB
Connector TypeMale Pin, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max [Max]8 GHz
Housing ColorWhite
Impedance50 Ohms
Mounting TypeThrough Hole
Number of Ports1
Shield TerminationSolder
Voltage Rating170 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 3.80
10$ 2.90
25$ 2.61
50$ 2.42
100$ 2.24
250$ 2.03
500$ 1.89
1000$ 1.76
2500$ 1.61

Description

General part information

RF3-05 Series

SMB Connector Jack, Male Pin 50 Ohms Through Hole Solder
