HGG.1B.305.CLLP

Active

LEMO

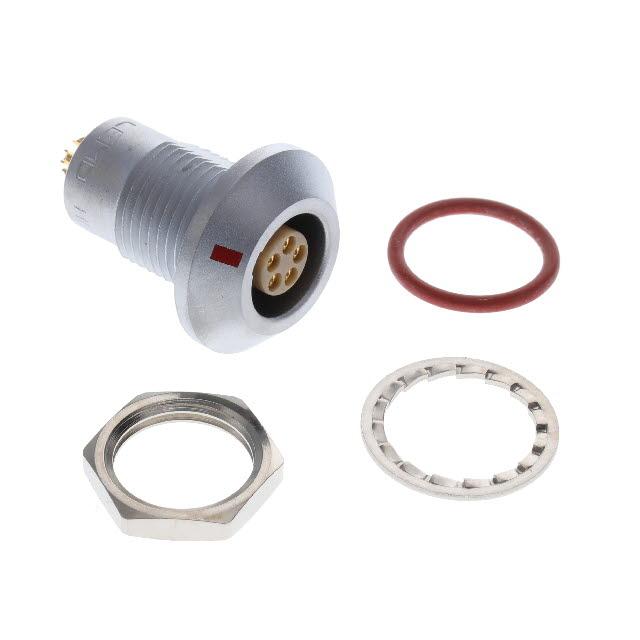

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HGG.1B.305.CLLP

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.13
		10	$ 33.85

Description

General part information

HGG.1B Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HGG.1B.305.CLLP	HGG.1B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	9 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Potted	Vacuumtight, Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	-	1 - 14
Number of Positions	-	16
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 316
Shielding	Shielded	Shielded
Termination	-	Solder

HGG.1B Series

CONN RCPT FMALE 7P GOLD SLDR CUP

Part	Fastening Type	Color	Number of Positions	Insert Material	Material Flammability Rating	Contact Material	Current Rating (Amps)	Shell Finish	Mounting Feature	Connector Type	Orientation	Contact Finish - Mating	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Shielding	Ingress Protection	Features	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Termination
LEMO HGG.1B.307.CLLPV	Push-Pull	Silver	7	Polyetheretherketone (PEEK)	UL94 V-0	Bronze	7 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted, Vacuumtight	307	100 °C	-20 C
LEMO HGG.1B.310.CLLPV	Push-Pull	Silver	10	Polyetheretherketone (PEEK)	UL94 V-0	Bronze	2.5 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted, Vacuumtight	310	100 °C	-20 C
LEMO HGG.1B.305.CLLP	Push-Pull	Silver		Polyetheretherketone (PEEK)	UL94 V-0	Bronze	9 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted	305	100 °C	-20 C
LEMO HGG.1B.306.CLLPV	Push-Pull	Silver	6	Polyetheretherketone (PEEK)	UL94 V-0	Bronze	7 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted, Vacuumtight	306	100 °C	-20 C
LEMO HGG.1B.305.CLLPV	Push-Pull	Silver		Polyetheretherketone (PEEK)	UL94 V-0	Bronze	9 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted, Vacuumtight	305	100 °C	-20 C
LEMO HGG.1B.314.CLLPV	Push-Pull	Silver	14	Polyetheretherketone (PEEK)	UL94 V-0	Bronze	2 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted, Vacuumtight	314	100 °C	-20 C
LEMO HGG.1B.130.CTLP	Push-Pull	Silver	1	Polytetrafluoroethylene (PTFE)		Bronze		Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted		100 °C	-20 C
LEMO HGG.1B.316.CLLPV	Push-Pull	Silver		Polyetheretherketone (PEEK)	UL94 V-0	Bronze	1.5 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted, Vacuumtight	316	100 °C	-20 C	16
LEMO HGG.1B.316.CLNP	Push-Pull	Silver		Polyetheretherketone (PEEK)	UL94 V-0	Bronze	1.5 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted	316	100 °C	-20 C	16	Panel Mount, Through Hole	Solder
LEMO HGG.1B.306.CLLP	Push-Pull	Silver	6	Polyetheretherketone (PEEK)	UL94 V-0	Bronze	7 A	Chrome	Bulkhead - Rear Side Nut	Receptacle, Female Sockets	G	Gold	Brass	59 Áin	1.5 Ám	Metal	Shielded	IP68 - Dust Tight, Waterproof	Potted	306	100 °C	-20 C
