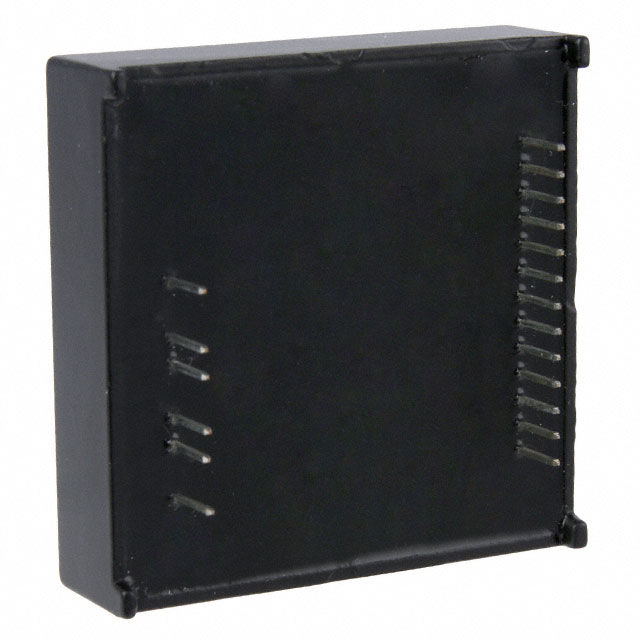

SPMD150STP
ObsoleteSTMicroelectronics
STEPPER DRIVER 1.5A 10-42V LOAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPMD150STP
ObsoleteSTMicroelectronics
STEPPER DRIVER 1.5A 10-42V LOAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPMD150STP |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 1.5 A |
| Interface | Step / Direction |
| Motor Type | Stepper |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Module |
| Voltage - Load [Max] | 42 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SPMD150 Series
Stepper, Bipolar 3 ~ 5.25VDC Supply 1.5A 10 ~ 42V Load
