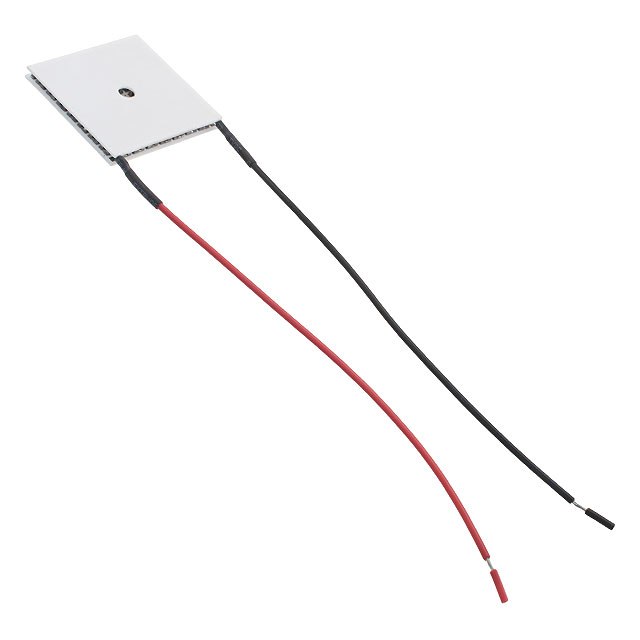

430474-501

Active

Laird Thermal Systems, Inc.

PELTIER SH10,125,05,L1,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER SH10,125,05,L1,W4.5

Technical Specifications

Parameters and characteristics for this part

PELTIER SH10,125,05,L1,W4.5

Part	Size / Dimension [x]	Size / Dimension [y]	Qmax @ Th	Height [z]	Number of Stages	Resistance	Current - Max [Max]	Voltage - Max [Max]	Operating Temperature	Features	Delta Tmax @ Th
Laird Thermal Systems, Inc. 430474-501	29.7 mm	29.7 mm	33.7 W	3.2 mm	1	3.3 Ohms	4 A	14.3 V	80 °C	Lead Wires, Non-Sealed	67 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 33.7W @ 25°C 4 A 80°C
