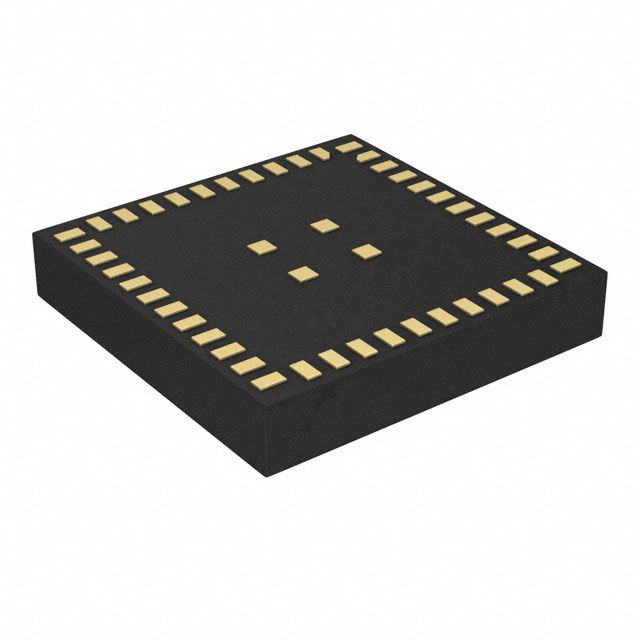

CYW20736ST
ActiveInfineon Technologies
BLUETOOTH LOW ENERGY (BLE) CONNECTIVITY SOLUTIONS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CYW20736ST
ActiveInfineon Technologies
BLUETOOTH LOW ENERGY (BLE) CONNECTIVITY SOLUTIONS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CYW20736ST |
|---|---|
| Frequency | 2.4 GHz |
| GPIO | 14 |
| Memory Size | 60 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 48-TFLGA |
| Protocol | Bluetooth v4.1 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | UART, I2C, SPI |
| Supplier Device Package | 48-LGA |
| Supplier Device Package [x] | 6.5 |
| Supplier Device Package [y] | 6.5 |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.4 V |
CYW20736 Series
| Part | RF Family/Standard | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Frequency | Mounting Type | Protocol | Voltage - Supply [Min] | Voltage - Supply [Max] | Memory Size | GPIO | Serial Interfaces | Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Infineon Technologies | Bluetooth | 48-LGA | 6.5 | 6.5 | 2.4 GHz | Surface Mount | Bluetooth v4.1 | 1.4 V | 3.6 V | 60 kB | 14 | I2C SPI UART | TxRx + MCU | 48-TFLGA | -30 ░C | 85 °C |
Infineon Technologies | Bluetooth | 80-WLCSP | 2.2 | 2.2 | 2.4 GHz | Surface Mount | Bluetooth v4.1 | 1.4 V | 3.6 V | 14 | I2C SPI UART | TxRx + MCU | 80-XFBGA WLCSP | -30 ░C | 85 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 12.04 | |
Description
General part information
CYW20736 Series
IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 48-TFLGA
