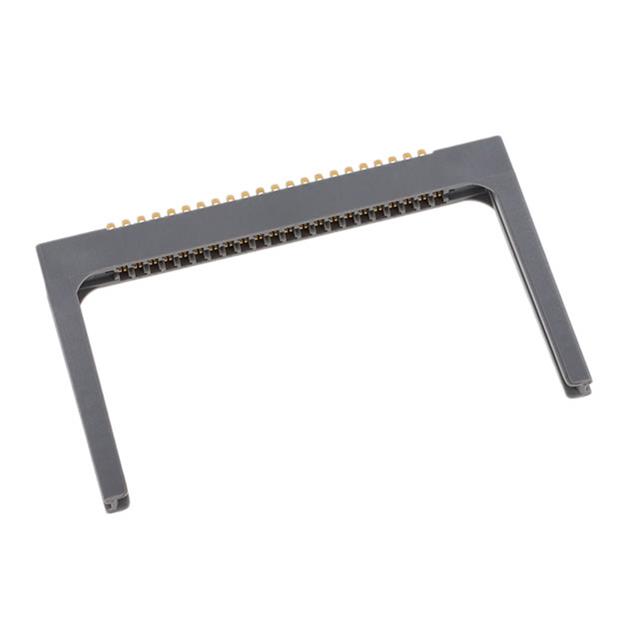

Specification	322-022-501-158

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Gray
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Glass Filled, PC, Polycarbonate
Mounting Type	Through Hole
Number of Positions	44, 22
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1 rows

322-022 Series

Part	Contact Material	Number of Positions	Features	Color	Operating Temperature (Min)	Operating Temperature (Max)	Gender	Number of Rows	Pitch	Contact Finish Thickness	Card Type	Contact Type	Termination	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Read Out	Flange Feature	Mounting Type	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 322-022-554-157	Copper Alloy	22 44	Card Guides	Gray	-40 °C	105 °C	Female	2	0.156 in	10 Ąin	Dual Edge Non Specified	Semi Bellows	Solder Eyelet(s)	0.054 in	0.07 in	Gold	Dual	Flush Mount M3 Threaded Insert Top Opening	Right Angle Through Hole	Glass Filled PC Polycarbonate	1 rows
EDAC Inc. 322-022-505-158	Copper Alloy	22	Card Guides	Gray	-40 °C	105 °C	Female	1	0.156 in	10 Ąin	Non Specified Single Edge	Semi Bellows	Solder Eyelet(s)	0.054 in	0.07 in	Gold	Single	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Glass Filled PC Polycarbonate	1 rows
EDAC Inc. 322-022-521-154	Copper Alloy	22 44	Card Guides	Gray	-40 °C	105 °C	Female	2	0.156 in	10 Ąin	Dual Edge Non Specified	Semi Bellows	Solder	0.054 in	0.07 in	Gold	Dual	Flush Mount Top Opening Unthreaded	Through Hole	Glass Filled PC Polycarbonate	1 rows	0.156 in
EDAC Inc. 322-022-559-154	Copper Alloy	22	Card Guides	Gray	-40 °C	105 °C	Female	1	0.156 in	10 Ąin	Non Specified Single Edge	Semi Bellows	Solder	0.054 in	0.07 in	Gold	Single	Flush Mount Top Opening Unthreaded	Right Angle Through Hole	Glass Filled PC Polycarbonate	1 rows	0.156 in
EDAC Inc. 322-022-525-158	Copper Alloy	22	Card Guides	Gray	-40 °C	105 °C	Female	1	0.156 in	10 Ąin	Non Specified Single Edge	Semi Bellows	Solder	0.054 in	0.07 in	Gold	Single	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Glass Filled PC Polycarbonate	1 rows
EDAC Inc. 322-022-554-158	Copper Alloy	22 44	Card Guides	Gray	-40 °C	105 °C	Female	2	0.156 in	10 Ąin	Dual Edge Non Specified	Semi Bellows	Solder Eyelet(s)	0.054 in	0.07 in	Gold	Dual	4-40 Flush Mount Threaded Insert Top Opening	Right Angle Through Hole	Glass Filled PC Polycarbonate	1 rows
EDAC Inc. 322-022-545-157	Copper Alloy	22	Card Guides	Gray	-40 °C	105 °C	Female	1	0.156 in	10 Ąin	Non Specified Single Edge	Semi Bellows	Wire Wrap	0.054 in	0.07 in	Gold	Single	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Glass Filled PC Polycarbonate	1 rows
EDAC Inc. 322-022-531-154	Copper Alloy	22	Card Guides	Gray	-40 °C	105 °C	Female	1	0.156 in	10 Ąin	Non Specified Single Edge	Semi Bellows	Solder	0.054 in	0.07 in	Gold	Single	Flush Mount Top Opening Unthreaded	Through Hole	Glass Filled PC Polycarbonate	1 rows	0.156 in
EDAC Inc. 322-022-501-158	Copper Alloy	22 44	Card Guides	Gray	-40 °C	105 °C	Female	2	0.156 in	10 Ąin	Dual Edge Non Specified	Semi Bellows	Solder Eyelet(s)	0.054 in	0.07 in	Gold	Dual	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Glass Filled PC Polycarbonate	1 rows
EDAC Inc. 322-022-547-157	Copper Alloy	22	Card Guides	Gray	-40 °C	105 °C	Female	1	0.156 in	10 Ąin	Non Specified Single Edge	Semi Bellows	Wire Wrap	0.054 in	0.07 in	Gold	Single	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Glass Filled PC Polycarbonate	1 rows
