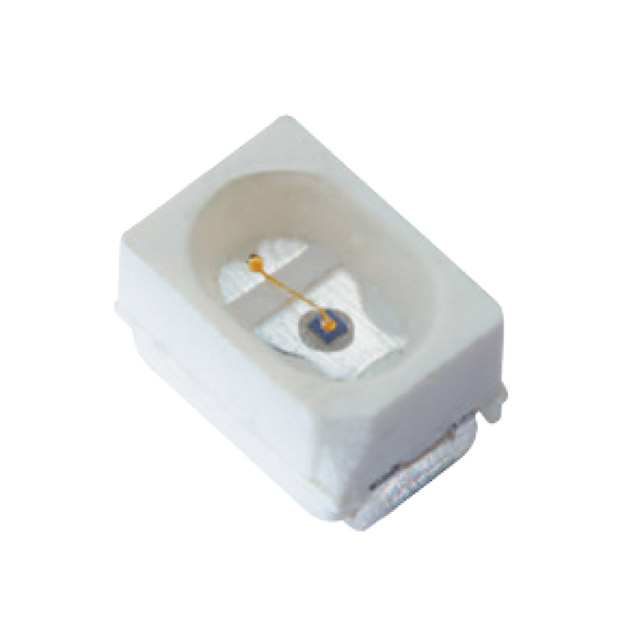

XZCBD80S-2HTA
ActiveSunLED
LED BLUE CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZCBD80S-2HTA
ActiveSunLED
LED BLUE CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCBD80S-2HTA |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.3 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.65 mm |
| Lens Size [y] | 1.15 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [Max] | 300 mcd |
| Millicandela Rating [Min] | 80 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 465 nm |
| Wavelength - Peak | 460 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.14 | |
| 6000 | $ 0.13 | |||
| 10000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information
XZCBD80 Series
Blue 465nm LED Indication - Discrete 3.3V 2-SMD, J-Lead
