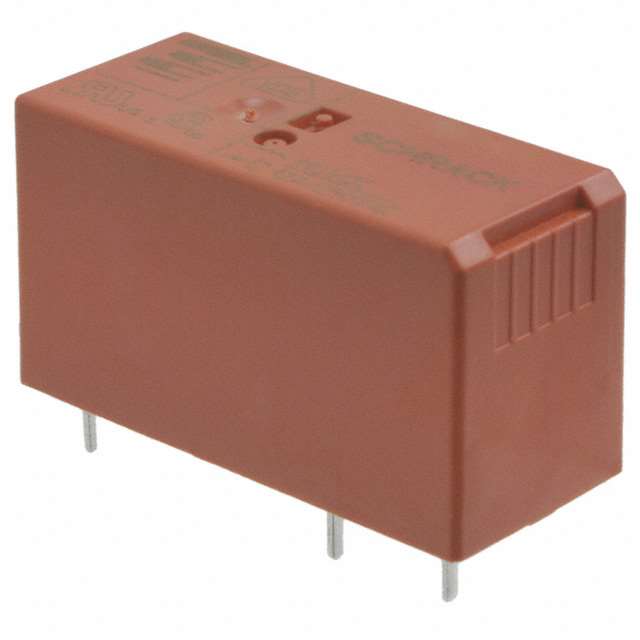

RT114110
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 12A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT114110
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 12A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT114110 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 3.8 mA |
| Coil Insulation | Class F |
| Coil Resistance | 28800 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 110 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 4800 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 77 VDC |
| Must Release Voltage | 11 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.18 | |
| 10 | $ 4.86 | |||
| 25 | $ 4.32 | |||
| 50 | $ 4.10 | |||
| 100 | $ 3.89 | |||
| 250 | $ 3.80 | |||
Description
General part information
RT1141 Series
General Purpose Relay SPDT (1 Form C) 110VDC Coil Through Hole
