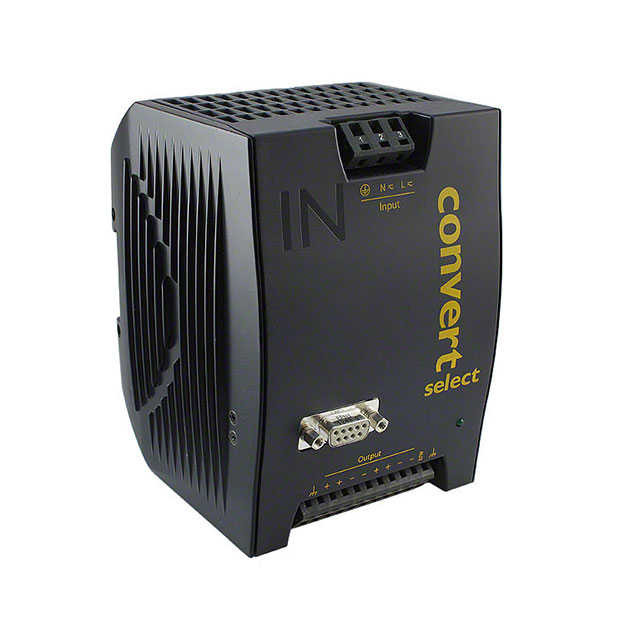

LWR1801-6EG

Active

Bel Power Solutions

AC/DC DIN RAIL SUPPLY 49.4V 125W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC DIN RAIL SUPPLY 49.4V 125W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LWR1801-6EG	LWR1801 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	85 VAC	85 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	NEMKO, cCSAus, CE, cULus, TUV	NEMKO, cCSAus, CE, cULus, TUV
Current - Output (Max) [Max]	2.5 A	2.5 A
Efficiency	88 %	88 %
Features	PFC, Adjustable Output, Universal Input	PFC, Adjustable Output, Universal Input
Input Type	AC	AC
Minimum Load Required	True	True
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	125 W	125 - 250 W
Size / Dimension [x]	113.6 mm	113.6 mm
Size / Dimension [x]	4.47 in	4.47 in
Size / Dimension [y]	4.05 "	4.05 "
Size / Dimension [y]	103 mm	103 mm
Size / Dimension [z]	5.43 "	5.43 "
Size / Dimension [z]	138 mm	138 mm
Voltage - Isolation	2.8 kV	2.8 kV
Voltage - Output 1	49.4 V	49.4 V

AC/DC DIN RAIL SUPPLY 49.4V 250W

Part	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Power (Watts)	Approval Agency	Efficiency	Number of Outputs	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current - Output (Max) [Max]
Bel Power Solutions LWR1801-6EM1G	ITE (Commercial)	85 VAC	264 VAC	49.4 V	113.6 mm	5.43 "	4.05 "	103 mm	138 mm	4.47 in	2.8 kV	250 W	cCSAus, CE, cULus, NEMKO, TUV	88 %	1	AC	-40 °C	60 °C	Adjustable Output, PFC, Universal Input	2.5 A
Bel Power Solutions LWR1801-6EG	ITE (Commercial)	85 VAC	264 VAC	49.4 V	113.6 mm	5.43 "	4.05 "	103 mm	138 mm	4.47 in	2.8 kV	125 W	cCSAus, CE, cULus, NEMKO, TUV	88 %	1	AC	-40 °C	60 °C	Adjustable Output, PFC, Universal Input	2.5 A
Bel Power Solutions LWR1801-6E	ITE (Commercial)	85 VAC	264 VAC	49.4 V	113.6 mm	5.43 "	4.05 "	103 mm	138 mm	4.47 in	2.8 kV	125 W	cCSAus, CE, cULus, NEMKO, TUV	88 %	1	AC	-40 °C	60 °C	Adjustable Output, PFC, Universal Input	2.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 49.4V 125W

Technical documentation and resources

No documents available
