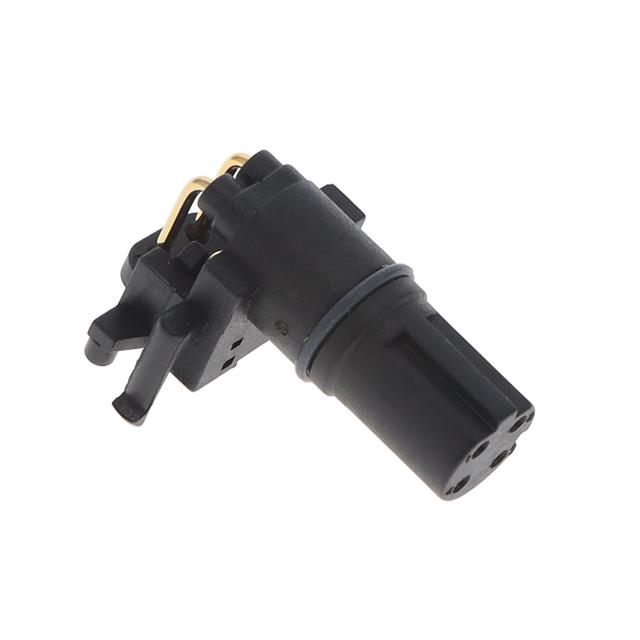

M12D-04PFFR-EE0001

Active

Amphenol LTW

M12 D CODE 90 DIP, PLASTIC, F CO

Search across all available documentation for this part.

Active

Amphenol LTW

M12 D CODE 90 DIP, PLASTIC, F CO

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Number of Positions	Ingress Protection	Contact Material	Orientation	Shell Material	Color	Insert Material	Termination	Voltage Rating	Features	Mounting Type	Shell Finish	Connector Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shielding	Shell Size - Insert	Mounting Feature
Amphenol LTW M12D-04PFFR-EE0001	4 A	4	IP67 - Dust Tight Waterproof	Copper Alloy	D	Zinc Alloy	Silver	Thermoplastic	Solder	250 VDC	Board Guide Board Lock	Through Hole Right Angle	Nickel	Receptacle Female Sockets	Metal	-40 °C	105 ░C	Gold	Shielded	M12-4
Amphenol LTW M12D-04PFFR-SF8001	4 A	4	IP68 - Dust Tight Waterproof	Copper Alloy	D	Zinc Alloy	Silver	Polyamide (PA) Nylon Glass Filled	Solder	250 VDC	Board Guide Board Lock	Panel Mount Right Angle Through Hole	Nickel	Female Sockets Plug	Metal	-40 °C	105 ░C	Gold	Unshielded	M12-4	Bulkhead - Front Side Nut
Amphenol LTW M12D-04PFFR-SF7003	4 A	4	IP67 - Dust Tight Waterproof	Copper Alloy	D	Zinc Die Cast	Silver	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Solder	250 VDC	Board Guide Board Lock	Panel Mount Right Angle Through Hole	Nickel	Female Sockets Plug	Metal	-40 °C	105 ░C	Gold	Unshielded	M12-4	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
