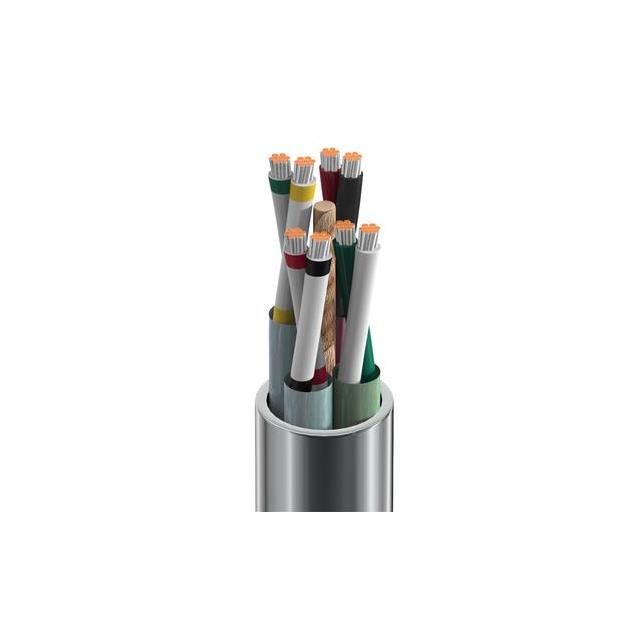

8725 0601000

Active

Belden Inc.

4 SH PR #20 PP PVC

Search across all available documentation for this part.

Active

Belden Inc.

4 SH PR #20 PP PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8725 0601000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.336 "
Jacket (Insulation) Diameter [diameter]	8.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	400 V
Wire Gauge	20 AWG

Part	Number of Conductors	Features	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Shield Type	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Jacket (Insulation) Material	Cable Type	Length	Length	Voltage	Usage
Belden Inc. 8725 0601000	8	Drain Wire	20 AWG	28	7	Aluminum Polyester	Foil	100 %	-40 °C	105 ░C	0.336 "	8.53 mm	Copper Tinned	Chrome	0.762 mm	0.03 in	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	Multi-Pair	1000 ft	304.8 m	400 V	Audio Control Instrumentation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.92

General part information

8 (4 Pair) Conductor Multi-Pair Cable Chrome 20 AWG Foil 1000.0' (304.8m)
