CY8C6244LQI-S4D92

Active

Infineon Technologies

MCU 32-BIT ARM CORTEX M0+/ARM CORTEX M4F RISC 256KB FLASH 1.8V/2.5V/3.3V 68-PIN QFN EP TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CY8C6244LQI-S4D92

Active

Infineon Technologies

MCU 32-BIT ARM CORTEX M0+/ARM CORTEX M4F RISC 256KB FLASH 1.8V/2.5V/3.3V 68-PIN QFN EP TRAY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY8C6244LQI-S4D92

Connectivity	I2C, SPI, LINbus, CANbus, UART/USART, QSPI, USB
Core Processor	ARM® Cortex®-M0+/M4F
Core Size [custom]	32-Bit Dual-Core
Data Converters	Sigma-Delta, D/A 1x12b, A/D 12b SAR
Mounting Type	Surface Mount
Number of I/O	52
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

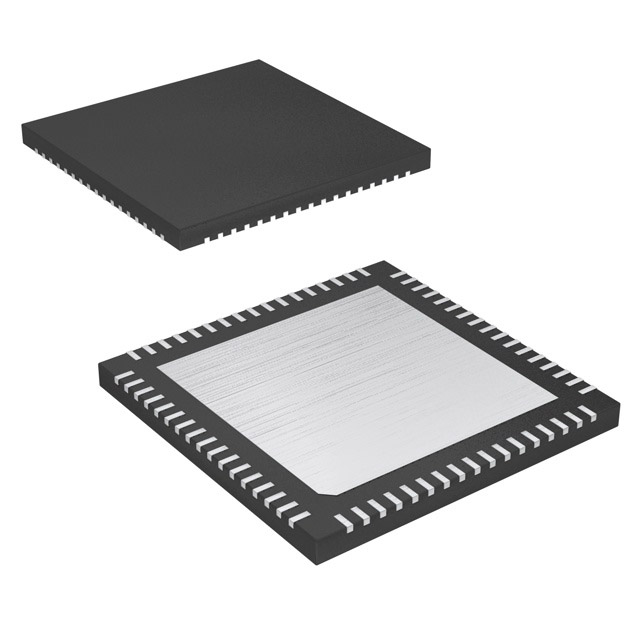

Package / Case	68-VFQFN Exposed Pad
Peripherals	Brown-out Detect/Reset, CapSense, LVD, POR, PWM, WDT, LCD
Program Memory Size	256 KB
Program Memory Type	FLASH
RAM Size	128 K
Speed	150 MHz
Speed	50 MHz
Supplier Device Package	68-QFN (8x8)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.7 V

CY8C6244 Series

Part	Program Memory Type	Core Processor	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Program Memory Size	Speed	Speed	Mounting Type	RAM Size	Oscillator Type	Core Size [custom]	Connectivity	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of I/O	Data Converters
Infineon Technologies CY8C6244LQI-S4D12	FLASH	ARM® Cortex®-M0+ ARM® Cortex®-M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	100 MHz	Surface Mount	128 K	External Internal	32-Bit Dual-Core	FIFO I2C LINbus QSPI SPI UART/USART USB	68-VFQFN Exposed Pad	105 °C	-40 °C	68-QFN (8x8)	52
Infineon Technologies CY8C6244AZI-S4D62	FLASH	ARM® Cortex®-M0+ ARM® Cortex®-M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	100 MHz	Surface Mount	128 K	External Internal	32-Bit Dual-Core	CANbus FIFO I2C LINbus QSPI SPI UART/USART	64-LQFP Exposed Pad	105 °C	-40 °C	64-TQFP (10x10)	54
Infineon Technologies CY8C6244LQI-S4D92	FLASH	ARM® Cortex®-M0+/M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	50 MHz	Surface Mount	128 K	Internal	32-Bit Dual-Core	CANbus I2C LINbus QSPI SPI UART/USART USB	68-VFQFN Exposed Pad	105 °C	-40 °C	68-QFN (8x8)	52	A/D 12b SAR D/A 1x12b Sigma-Delta
Infineon Technologies CY8C6244AZI-S4D12	FLASH	ARM® Cortex®-M0+ ARM® Cortex®-M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	100 MHz	Surface Mount	128 K	External Internal	32-Bit Dual-Core	FIFO I2C LINbus QSPI SPI UART/USART	64-LQFP Exposed Pad	105 °C	-40 °C	64-TQFP (10x10)	54
Infineon Technologies CY8C6244AZI-S4D93	FLASH	ARM® Cortex®-M0+/M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	50 MHz	Surface Mount	128 K	Internal	32-Bit Dual-Core	CANbus I2C LINbus QSPI SPI UART/USART	80-LQFP	105 °C	-40 °C	80-TQFP (12x12)	62	A/D 12b SAR D/A 1x12b Sigma-Delta
Infineon Technologies CY8C6244LQI-S4D62	FLASH	ARM® Cortex®-M0+ ARM® Cortex®-M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	100 MHz	Surface Mount	128 K	External Internal	32-Bit Dual-Core	CANbus FIFO I2C LINbus QSPI SPI UART/USART USB	68-VFQFN Exposed Pad	105 °C	-40 °C	68-QFN (8x8)	52
Infineon Technologies CY8C6244AZI-S4D82	FLASH	ARM® Cortex®-M0+ ARM® Cortex®-M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	100 MHz	Surface Mount	128 K	External Internal	32-Bit Dual-Core	FIFO I2C LINbus QSPI SPI UART/USART	64-LQFP Exposed Pad	105 °C	-40 °C	64-TQFP (10x10)	54
Infineon Technologies CY8C6244AZQ-S4D93	FLASH	ARM® Cortex®-M0+ ARM® Cortex®-M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	100 MHz	Surface Mount	128 K	External Internal	32-Bit Dual-Core	CANbus FIFO I2C LINbus QSPI SPI UART/USART	80-LQFP	105 °C	-40 °C	80-TQFP (12x12)	62
Infineon Technologies CY8C6244AZQ-S4D92	FLASH	ARM® Cortex®-M0+ ARM® Cortex®-M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	100 MHz	Surface Mount	128 K	External Internal	32-Bit Dual-Core	CANbus FIFO I2C LINbus QSPI SPI UART/USART	64-LQFP Exposed Pad	105 °C	-40 °C	64-TQFP (10x10)	54
Infineon Technologies CY8C6244AZI-S4D83	FLASH	ARM® Cortex®-M0+ ARM® Cortex®-M4F	3.6 V	1.7 V	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	256 KB	150 MHz	100 MHz	Surface Mount	128 K	External Internal	32-Bit Dual-Core	FIFO I2C LINbus QSPI SPI UART/USART	80-LQFP	105 °C	-40 °C	80-TQFP (12x12)	62

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 4.76
		10	$ 4.21
		25	$ 3.86
Digikey	Tray	1	$ 7.96
		10	$ 7.19
		25	$ 6.85
		80	$ 5.95
		260	$ 5.68
		520	$ 5.18
		1040	$ 4.51

Description

General part information

CY8C6244 Series

ARM® Cortex®-M0+/M4F - Microcontroller IC 32-Bit Dual-Core 50MHz, 150MHz 256KB (256K x 8) FLASH 68-QFN (8x8)
