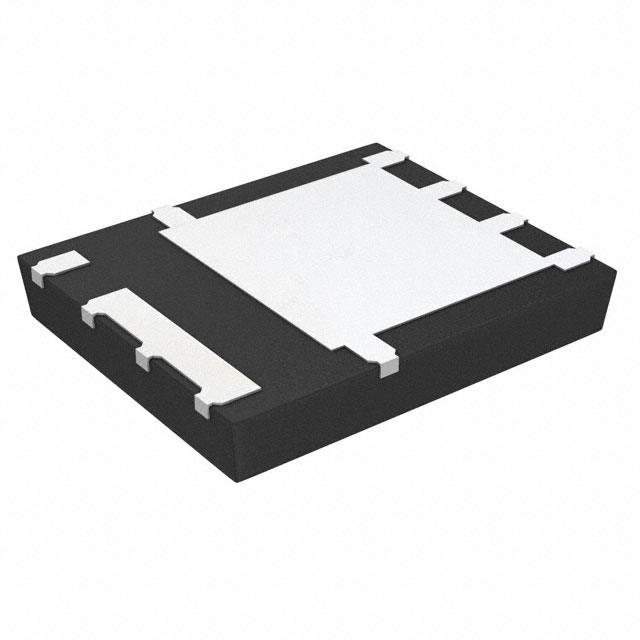

BSC016N06NSATMA1

Active

Infineon Technologies

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 60 V ; SUPERSO8 5X6 PACKAGE; 1.6 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

BSC016N06NSATMA1

Active

Infineon Technologies

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 60 V ; SUPERSO8 5X6 PACKAGE; 1.6 MOHM;

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSC016N06NSATMA1

Current - Continuous Drain (Id) @ 25°C	30 A, 100 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	6 V, 10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	71 nC
Input Capacitance (Ciss) (Max) @ Vds	5200 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max)	139 W, 2.5 W
Rds On (Max) @ Id, Vgs	1.6 mOhm
Supplier Device Package	PG-TDSON-8 FL
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.8 V

BSC016 Series

Part	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Vgs (Max)	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)	Package / Case	Supplier Device Package	Technology	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs [Max]
Infineon Technologies BSC016N06NSATMA1	6 V 10 V	N-Channel	20 V	60 V	-55 °C	175 ░C	2.5 W 139 W	8-PowerTDFN	PG-TDSON-8 FL	MOSFET (Metal Oxide)	5200 pF	Surface Mount	30 A 100 A	2.8 V	1.6 mOhm	71 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.27
		10	$ 2.13
		100	$ 1.48
		500	$ 1.20
		1000	$ 1.11
		2000	$ 1.06
	Digi-Reel®	1	$ 3.27
		10	$ 2.13
		100	$ 1.48
		500	$ 1.20
		1000	$ 1.11
		2000	$ 1.06
	Tape & Reel (TR)	5000	$ 1.06
Newark	Each (Supplied on Full Reel)	5000	$ 1.07

Description

General part information

BSC016 Series

OptiMOS™ 5 60V is optimized for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices are a perfect choice for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.
