Phoenix Contact

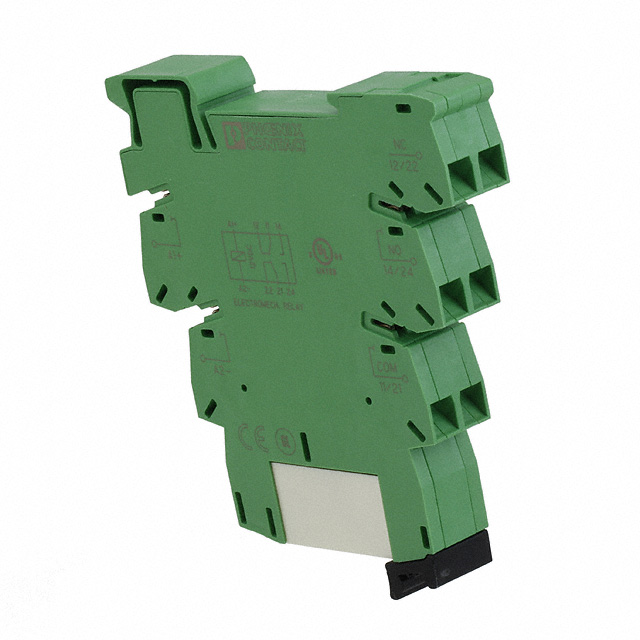

RELAY GEN PURPOSE DPDT 6A 12V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	2912497

Coil Current	33 mA
Coil Resistance	364 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

RELAY GEN PURPOSE DPDT 6A 12V

Part	Contact Rating (Current)	Coil Voltage	Contact Form	Contact Material	Coil Type	Features	Switching Voltage	Operate Time	Coil Current	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Coil Resistance	Relay Type	Mounting Type
Phoenix Contact 2912497	6 A	12 VDC	DPDT (2 Form C)	Silver Nickel (AgNi)	Non Latching	Lighted Indicator, Socket Included	250 VAC, 250 VDC	8 ms	33 mA	Spring Terminal	-40 °C	60 °C	10 ms	364 Ohms	General Purpose	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 12VDC Coil DIN Rail
