M50-3930642

Active

Harwin Inc.

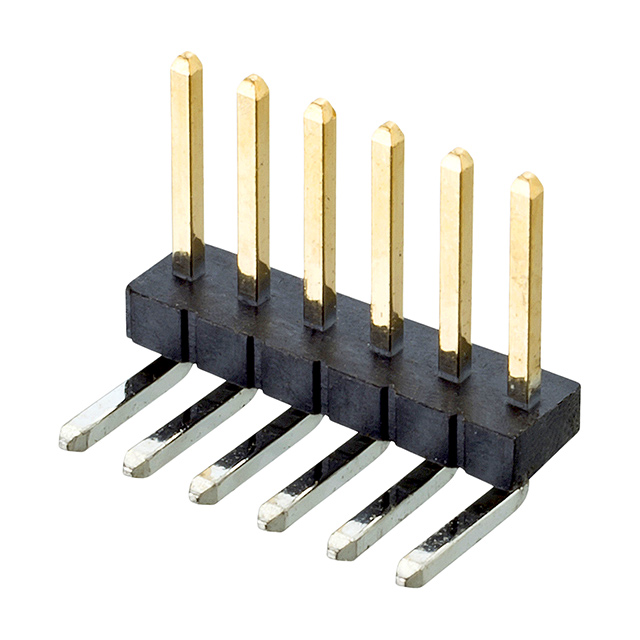

BTB CONN, HEADER, 6POS, 1ROWS, 1.27MM

Search across all available documentation for this part.

Active

Harwin Inc.

BTB CONN, HEADER, 6POS, 1ROWS, 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3930642

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Post	2.5 µm
Contact Finish Thickness - Post	98.4 µin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.039 "
Insulation Height	1 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Number of Positions	Contact Material	Insulation Material	Contact Type	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Connector Type	Contact Length - Mating	Contact Length - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Current Rating (Amps)	Style	Contact Shape	Mounting Type	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Number of Rows
Harwin Inc. M50-3930642	6	Brass	Nylon 9T Polyamide (PA9T)	Male Pin	0.094 in	2.4 mm	Unshrouded	0.039 "	1 mm	0.05 in	1.27 mm	Header	4 mm	0.157 in	Solder	2.5 µm	98.4 µin	Gold	1 A	Board to Board Cable	Square	Through Hole Right Angle	Black	Tin	-40 °C	105 ░C	UL94 V-0	Push-Pull	All	1
