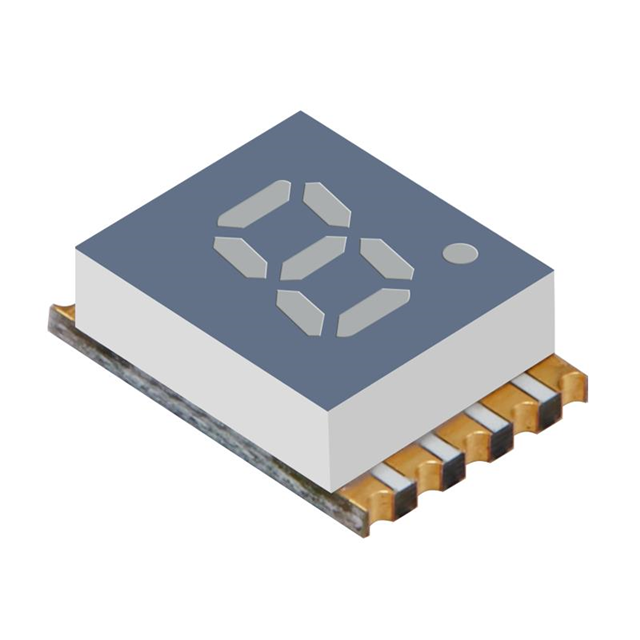

XZFVG05C

Active

SunLED

DISPLAY 7SEG 0.2" SGL GRN 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFVG05C

Active

SunLED

DISPLAY 7SEG 0.2" SGL GRN 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFVG05C

Color	Green
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	5.08 mm
Digit/Alpha Size	0.2 in
Display Type	7-Segment
Millicandela Rating	4 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	8 mm
Size / Dimension [x]	0.315 "
Size / Dimension [y]	0.272 "
Size / Dimension [y]	6.9 mm
Size / Dimension [z]	3 mm
Size / Dimension [z]	0.118 "
Voltage - Forward (Vf) (Typ)	2 V

XZFVG05 Series

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Common Pin	Current - Test	Power Dissipation (Max) [Max]	Display Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Color	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Number of Characters [custom]
SunLED XZFVG05C	2 V	4 mcd	Common Cathode	10 mA	75 mw	7-Segment	0.272 "	3 mm	8 mm	0.118 "	6.9 mm	0.315 "	Green	5.08 mm	0.2 in	10-SMD No Lead	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	650	$ 1.56
		1300	$ 1.34
		3250	$ 1.27
		6500	$ 1.24

Description

General part information

XZFVG05 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2V 10mA 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm) 10-SMD, No Lead
