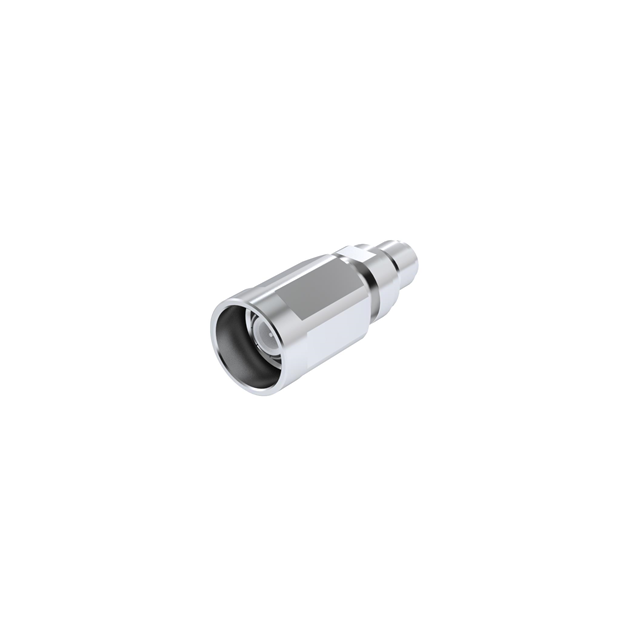

Specification	R191621007

Adapter Series	NEX10 to SMA
Adapter Type	Plug to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	NEX10 Plug, Male Pin
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max	20 Gbps
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Style	Straight

R19162 Series

Part	Center Contact Material	Body Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Impedance	Convert From (Adapter End)	Center Contact Plating	Style	Adapter Series	Adapter Type	Fastening Type	Mounting Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Frequency - Max	Center Gender	Conversion Type
Radiall USA, Inc. R191620037	Beryllium Copper	Brass	100 cycles	-55 °C	90 °C	Polytetrafluoroethylene (PTFE)	50 Ohm	10 Jack 4.3 Female Socket	Silver	Straight	4.3/10 to NEX10	Jack to Jack	Threaded	Free Hanging (In-Line)	NEX10 Jack	Female Socket	6000 MHz	Female	Between Series
Radiall USA, Inc. R191621017	Beryllium Copper	Brass	100 cycles	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	50 Ohm	Female Socket NEX10 Jack	Gold	Straight	NEX10 to SMA	Plug to Jack	Snap-On Threaded	Free Hanging (In-Line)	SMA Plug	Male Pin	20 Gbps	Female Male	Between Series
Radiall USA, Inc. R191620007	Beryllium Copper	Brass	100 cycles	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	50 Ohm	Male Pin NEX10 Plug	Silver	Straight	NEX10 to N	Plug to Jack	Push-Pull Threaded	Free Hanging (In-Line)	N Jack	Female Socket	11 GHz	Female Male	Between Series
Radiall USA, Inc. R191621007	Beryllium Copper	Brass	100 cycles	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	50 Ohm	Male Pin NEX10 Plug	Gold	Straight	NEX10 to SMA	Plug to Jack	Snap-On Threaded	Free Hanging (In-Line)	SMA Jack	Female Socket	20 Gbps	Female Male	Between Series
Radiall USA, Inc. R191620027	Beryllium Copper	Brass	100 cycles	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	50 Ohm	Female Socket NEX10 Jack	Silver	Straight	NEX10 to N	Jack to Jack	Threaded	Free Hanging (In-Line)	N Jack	Female Socket	11 GHz	Female	Between Series
Radiall USA, Inc. R191620017	Beryllium Copper	Brass	100 cycles	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	50 Ohm	7/16 Plug Male Pin	Silver	Straight	7/16 to NEX10	Plug to Jack	Snap-On Threaded	Free Hanging (In-Line)	NEX10 Jack	Female Socket	6000 MHz	Female Male	Between Series
