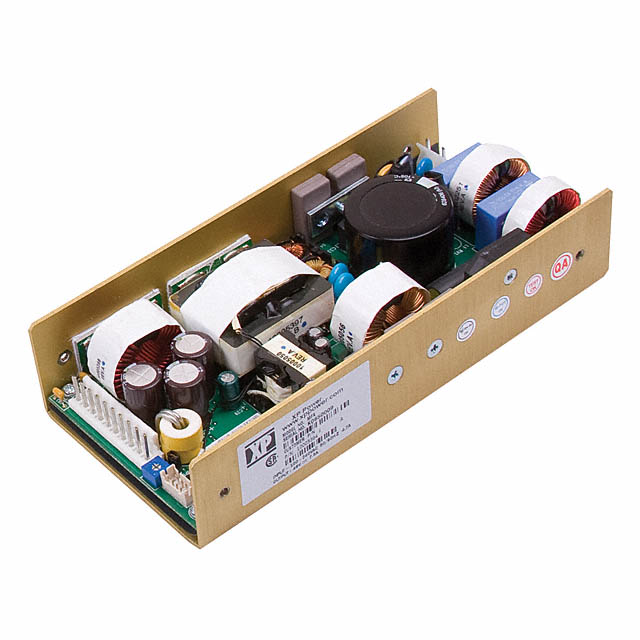

MFA420PS12

Active

XP POWER

AC/DC CONVERTER 12V 420W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 12V 420W

Technical Specifications

Parameters and characteristics for this part

Specification	MFA420PS12

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	35 A
Efficiency	86 %
Features	Hot Swappable, Adjustable Output, Standby Output, Load Sharing, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	420 W, 434 W
Size / Dimension [x]	6.8 "
Size / Dimension [x]	172.7 mm
Size / Dimension [y]	81.3 mm
Size / Dimension [y]	3.2 in
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Approval Agency	Current - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Applications	Number of Outputs	Voltage - Isolation	Type	Features	Efficiency	Power (Watts)	Power (Watts)	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
XP POWER MFA420PS48	CB CE	8.8 A	Chassis Mount	-10 °C	70 °C	48 V	ITE (Commercial)	1	3000 V	Open Frame	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	88 %	436 W	420 W	62368-1	6.8 "	81.3 mm	38.1 mm	3.2 in	172.7 mm	1.5 "
XP POWER MFA420PS12	CB CE	35 A	Chassis Mount	-10 °C	70 °C	12 V	ITE (Commercial)	1	3000 V	Open Frame	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	86 %		420 W 434 W	62368-1	6.8 "	81.3 mm	38.1 mm	3.2 in	172.7 mm	1.5 "
XP POWER MFA420PS48-SEF	CB CE	8.8 A	Chassis Mount	-10 °C	70 °C	48 V	ITE (Commercial)	1	3000 V	Enclosed	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	88 %	436 W	420 W	62368-1	8.2 "	84.5 mm	44.5 mm	3.33 in	208.3 mm	1.75 "
XP POWER MFA420PS12-SEF	CB CE	35 A	Chassis Mount	-10 °C	70 °C	12 V	ITE (Commercial)	1	3000 V	Enclosed	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	86 %		420 W 434 W	62368-1	8.2 "	84.5 mm	44.5 mm	3.33 in	208.3 mm	1.75 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 387.32

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
