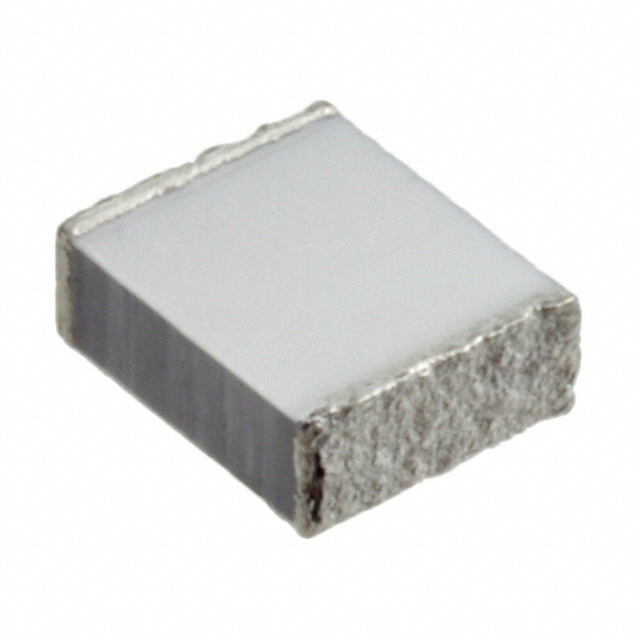

LDECE4100KA5N00
ActiveKEMET
CAP, 1ΜF, 50V, 10%, PEN, 2824
Deep-Dive with AI
Search across all available documentation for this part.
LDECE4100KA5N00
ActiveKEMET
CAP, 1ΜF, 50V, 10%, PEN, 2824
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDECE4100KA5N00 |
|---|---|
| Applications | Automotive |
| Capacitance | 1 µF |
| Dielectric Material | Polyethylene Naphthalate (PEN), Metallized - Stacked, Polyester |
| Features | High Temperature |
| Height - Seated (Max) [Max] [z] | 0.122 " |
| Height - Seated (Max) [Max] [z] | 3.1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2824 |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.287 in |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 6.1 mm |
| Size / Dimension [y] | 0.24 " |
| Termination | Solder Pads |
| Tolerance | 10 % |
| Voltage Rating - AC | 40 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.51 | |
| 10 | $ 1.93 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.47 | |||
| 500 | $ 1.18 | |||
| 1000 | $ 1.03 | |||
| Digi-Reel® | 1 | $ 2.51 | ||
| 10 | $ 1.93 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.47 | |||
| 500 | $ 1.18 | |||
| 1000 | $ 1.03 | |||
| Tape & Reel (TR) | 2250 | $ 1.00 | ||
| 4500 | $ 0.96 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.61 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.92 | |||
| 50 | $ 1.84 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.35 | |||
| 500 | $ 1.23 | |||
Description
General part information
LDECE Series
1 µF Film Capacitor 40V 50V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 2824 (7260 Metric)
