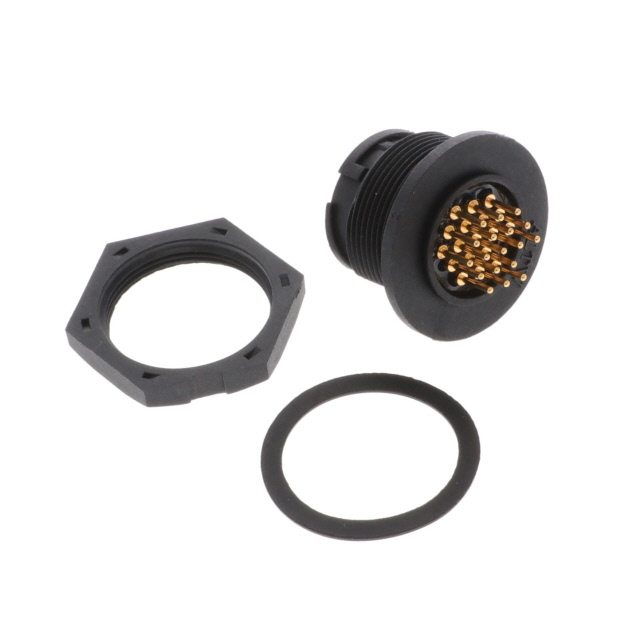

CU-18PMMP-LC7001 - CU-18PMMP-LC7001

CU-18PMMP-LC7001

Active
Amphenol LTW

CIRCULAR CONNECTOR, MIDDLE (C) SERIES, PANEL MOUNT PLUG, 18 CONTACTS, PCB PIN, BAYONET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetEnhanced Product Overview EN+1
CU-18PMMP-LC7001 - CU-18PMMP-LC7001

CU-18PMMP-LC7001

Active
Amphenol LTW

CIRCULAR CONNECTOR, MIDDLE (C) SERIES, PANEL MOUNT PLUG, 18 CONTACTS, PCB PIN, BAYONET

Deep-Dive with AI

DocumentsDatasheetEnhanced Product Overview EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationCU-18PMMP-LC7001
ColorBlack
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)2 A
Fastening TypeBayonet Lock
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolyamide (PA), Nylon, Glass Filled
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Panel Mount
Number of Positions18
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialNylon, Glass Filled, Polyamide (PA)
Shell Size - InsertC
ShieldingUnshielded
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 12.19
10$ 9.36
25$ 8.46
40$ 8.04
80$ 7.47
230$ 6.70
440$ 6.28
945$ 5.83
NewarkEach 10$ 7.72
25$ 7.65
50$ 7.58
100$ 6.49
250$ 5.47

Description

General part information

CU-18PMMP Series

18 Position Circular Connector Receptacle, Male Pins Solder
