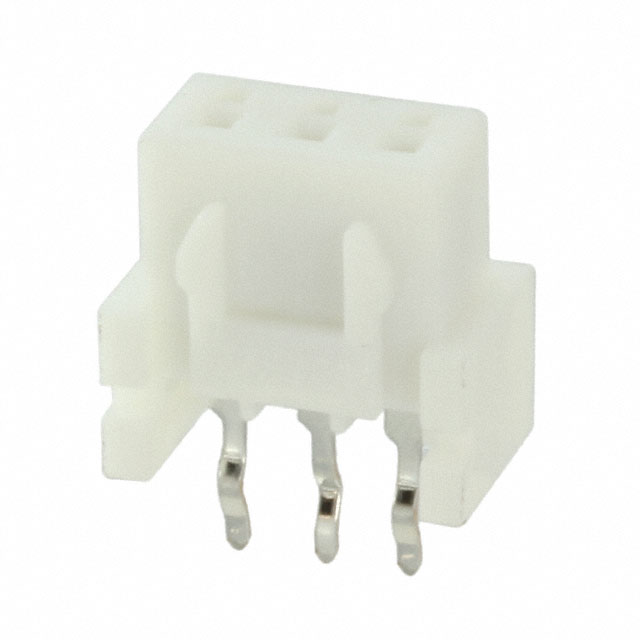

03JQ-BT

Active

JST Sales America Inc.

CONN RCPT 3POS 0.098 TIN PCB

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT 3POS 0.098 TIN PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03JQ-BT	03JQ Series

Connector Type	Receptacle	Receptacle
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	3 A	3 A
Fastening Type	Friction Lock	Friction Lock
Insulation Color	Natural	Natural
Insulation Height	9.5 mm	6 - 9.5 mm
Insulation Height	0.374 in	0.236 - 0.374 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	11.8 mm	11.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Termination	Solder, Press-Fit	Solder, Press-Fit
Voltage Rating	250 VDC	250 VDC

CONN RCPT 3POS 0.098 TIN PCB

Part	Contact Material	Contact Type	Insulation Color	Number of Positions Loaded	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Height	Insulation Height	Contact Shape	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Connector Type	Mated Stacking Heights	Number of Rows	Termination	Insulation Material	Current Rating (Amps)	Fastening Type
JST Sales America Inc. 03JQ-BT	Phosphor Bronze	Female Socket	Natural	All	250 VDC	-25 °C	85 °C	Through Hole	9.5 mm	0.374 in	Square	2.5 mm	0.098 in	UL94 V-0	Receptacle	11.8 mm	1	Press-Fit, Solder	Polyamide (PA66), Nylon 6/6	3 A	Friction Lock
JST Sales America Inc. 03JQ-ST	Phosphor Bronze	Female Socket	Natural	All	250 VDC	-25 °C	85 °C	Through Hole, Right Angle	6 mm	0.236 in	Square	2.5 mm	0.098 in	UL94 V-0	Receptacle		1	Press-Fit, Solder	Polyamide (PA66), Nylon 6/6	3 A	Friction Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin
