Technical Specifications
Parameters and characteristics for this part
| Specification | EVL-SRK2001-HVS |
|---|---|
| Board Type | Fully Populated |
| Frequency - Switching | 500 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Resonant |
| Supplied Contents | Board(s) |
| Utilized IC / Part | SRK2001 |
| Voltage - Input | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVL-SRK2001-HVS Series

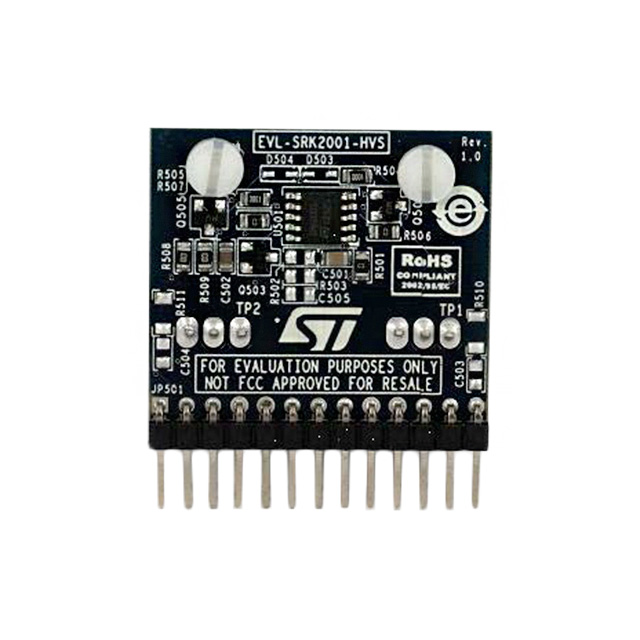

The EVL-SRK2001-HVS evaluation board for the SRK2001 synchronous rectification controller is suitable for LLC converter applications with higher output voltage (up to 48 V), thanks to the use of external sensing MOSFETs in series with DVS1,2 pins.
An external VCCvoltage (12 V, max. 20 V) is required to supply the IC.
The SRK2001 implements a control scheme for secondary-side synchronous rectification in LLC resonant converters, using a transformer with a center-tap secondary winding for full-wave rectification.
