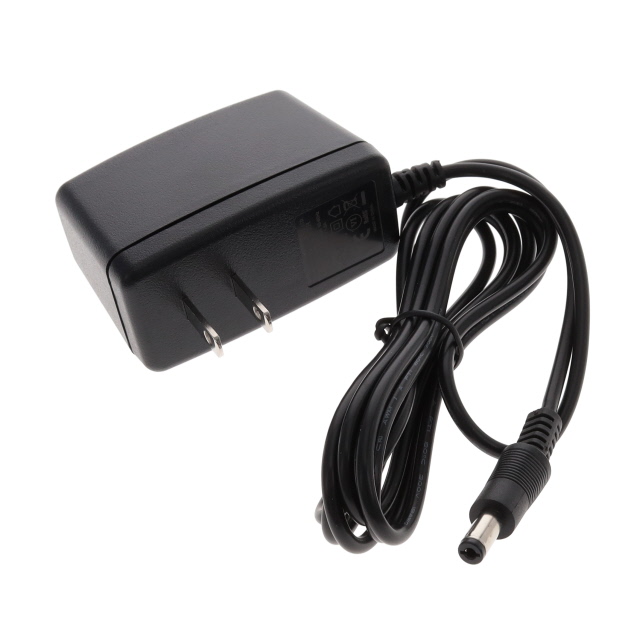

TRG1507-A-11E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MNT ADAPTER 7.5V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTRG15 Cable DC Plug Configuration Datasheet

TRG1507-A-11E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MNT ADAPTER 7.5V 12W

Deep-Dive with AI

DocumentsTRG15 Cable DC Plug Configuration Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRG1507-A-11E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, TUV, GS, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	1.6 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [z]	12 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	North America
Size / Dimension [x]	72 mm
Size / Dimension [x]	2.84 in
Size / Dimension [y]	1.38 "
Size / Dimension [y]	35 mm
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.05 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	7.5 V
Weight	0.309 lb
Weight	140 g

TRG1507 Series

Part	Current - Output (Max) [Max]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Approval Agency	Voltage - Output	Cord Length	Cord Length	Input Connector	Input Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Form	Power (Watts)	Region Utilized	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Weight	Weight	Output Connector	Output Connector [diameter]	Output Connector [z]
Cincon Electronics Co. LTD TRG1507-S-01E03 VI	1.6 A	60950-1	90 VAC	264 VAC	75 mW	CE cULus FCC GS PSE TUV	7.5 V	70.9 in	1.8 m	AS 3112	Fixed Blade	ITE (Commercial)	-20 C	60 °C	Wall Mount (Class II)	12 W	Australia	Positive Center	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI
Cincon Electronics Co. LTD TRG1507-E-01E03 VI	1.6 A	60950-1	90 VAC	264 VAC	75 mW	CE cULus FCC GS PSE TUV	7.5 V	70.9 in	1.8 m	KSC 8305	Fixed Blade	ITE (Commercial)	-20 C	60 °C	Wall Mount (Class II)	12 W	Europe	Positive Center	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI
Cincon Electronics Co. LTD TRG1507-U-01E03 VI	1.6 A	60950-1	90 VAC	264 VAC	75 mW	CE cULus FCC GS PSE TUV	7.5 V	70.9 in	1.8 m	BS 1363	Fixed Blade	ITE (Commercial)	-20 C	60 °C	Wall Mount (Class I)	12 W	United Kingdom	Positive Center	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI
Cincon Electronics Co. LTD TRG1507-A-11E03 VI	1.6 A		90 VAC	264 VAC	75 mW	CE cULus FCC GS PSE TUV	7.5 V	70.9 in	1.8 m	NEMA 1-15P	Fixed Blade	ITE (Commercial)	-20 C	60 °C	Wall Mount (Class II)	12 W	North America	Positive Center	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI	0.309 lb	140 g	Barrel Plug	2.1 mm 5.5 mm	12 mm
Cincon Electronics Co. LTD TRG1507-A-01E03 VI	1.6 A	60950-1	90 VAC	264 VAC	75 mW	CE cULus FCC GS PSE TUV	7.5 V	70.9 in	1.8 m	NEMA 1-15P	Fixed Blade	ITE (Commercial)	-20 C	60 °C	Wall Mount (Class II)	12 W	North America	Positive Center	52 mm	1.38 "	2.05 in	72 mm	35 mm	2.84 in	CoC Tier 2 Level VI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.00
		50	$ 10.73
		100	$ 9.98

Description

General part information

TRG1507 Series

7.5V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

TRG15 Cable DC Plug Configuration

Datasheet
