DSCQ00100L

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 50V 0.1A USSMINI3

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 50V 0.1A USSMINI3

Technical Specifications

Parameters and characteristics for this part

Specification	DSCQ00100L

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	210
Frequency - Transition	150 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C

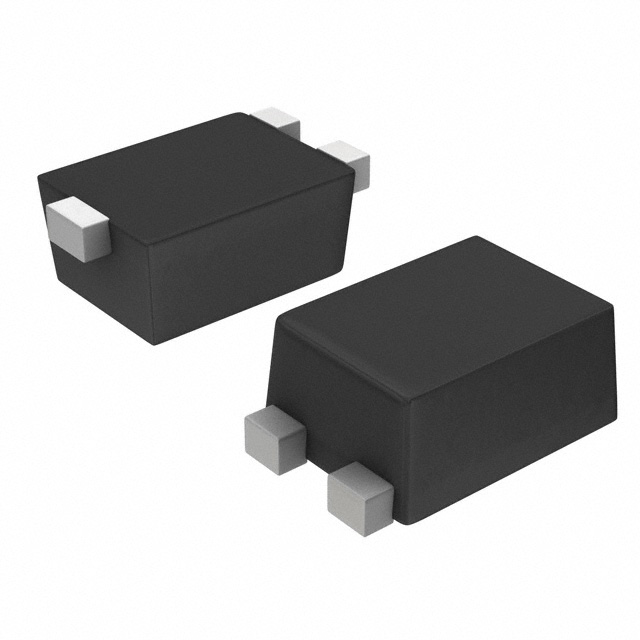

Package / Case	SOT-1123
Power - Max [Max]	100 mW
Supplier Device Package	USSMini3-F1-B
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Mounting Type	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Power - Max [Max]	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Current - Collector Cutoff (Max) [Max]
Panasonic Industrial Automation Sales DSCQ00100L	Surface Mount	150 MHz	100 mA	SOT-1123	50 V	USSMini3-F1-B	100 mW	150 °C	210	NPN	100 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 50 V 100 mA 150MHz 100 mW Surface Mount USSMini3-F1-B
