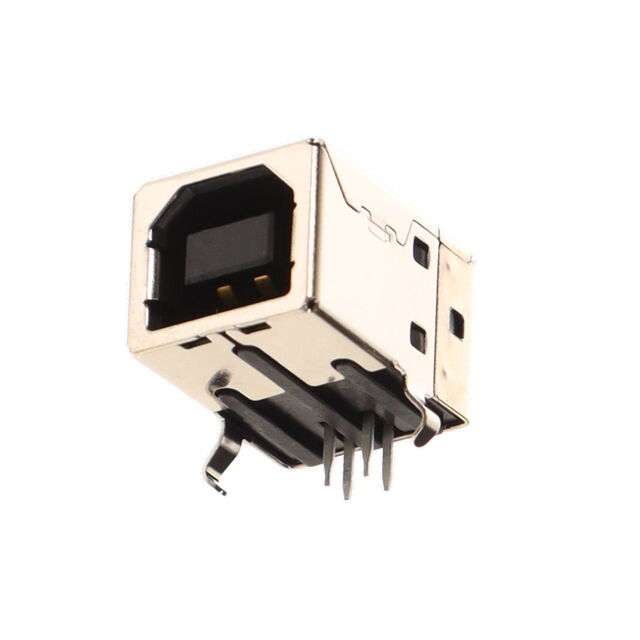

USB-B-S-S-B-TH-TR
ActiveSamtec Inc.
USB 2.0 INTERFACE, TYPE A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-B-S-S-B-TH-TR |
|---|---|
| Connector Type | USB-B |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -50 °C |
| Shell/Shielding Material | Steel |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
USB-B Series
USB Connectors USB 2.0 Interface, Type A
| Part | Mounting Feature | Mounting Type | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Connector Type | Shell/Shielding Material | Contact Finish | Features | Mating Cycles | Termination | Number of Contacts [custom] | Insulation Color | Specifications | Material Flammability Rating | Gender | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Horizontal | Surface Mount Right Angle | 1 | 85 °C | -50 °C | 30 VAC | USB-B | Steel | Gold | Board Guide Solder Retention | 1500 | Solder | 4 | Black | USB 2.0 | UL94 V-0 | Receptacle | |
Samtec Inc. | Vertical | Through Hole | 1 | 85 °C | -50 °C | 30 VAC | USB-A (USB TYPE-A) | Phosphor Bronze | Gold | 1500 | Solder | 4 | White | USB 2.0 | UL94 V-0 | Receptacle | Shielded | |
Samtec Inc. | Horizontal | Surface Mount Right Angle | 1 | 85 °C | -50 °C | 30 VAC | USB-B | Steel | Gold | Board Guide Solder Retention | 1500 | Solder | 4 | White | USB 2.0 | UL94 V-0 | Receptacle | |
Samtec Inc. | Horizontal | Through Hole Right Angle | 1 | 85 °C | -50 °C | 30 VAC | USB-B | Steel | Gold | 1500 | Solder | 4 | White | USB 2.0 | UL94 V-0 | Receptacle | ||
Samtec Inc. | Horizontal | Through Hole Right Angle | 1 | 85 °C | -50 °C | 30 VAC | USB-B | Steel | Gold | 1500 | Solder | 4 | Black | USB 2.0 | UL94 V-0 | Receptacle | ||
Samtec Inc. | Horizontal | Surface Mount Right Angle | 1 | 85 °C | -50 °C | 30 VAC | USB-B | Gold | 1500 | Solder | 4 | White | USB 2.0 | Receptacle | Shielded | |||
Samtec Inc. | Horizontal | Surface Mount Right Angle | 1 | 85 °C | -50 °C | 30 VAC | USB-B | Steel | Gold | Board Guide | 1500 | Solder | 4 | White | USB 2.0 | UL94 V-0 | Receptacle | |
Samtec Inc. | Horizontal | Through Hole Right Angle | 1 | 85 °C | -50 °C | 30 VAC | USB-B | Steel | Gold | 1500 | Solder | 4 | White | USB 2.0 | UL94 V-0 | Receptacle | ||
Samtec Inc. | Vertical | Through Hole | 1 | 85 °C | -50 °C | 30 VAC | USB-B | Gold | 1500 | Solder | 4 | White | USB 2.0 | Receptacle | Shielded | |||
Samtec Inc. | Vertical | Through Hole | 1 | 85 °C | -50 °C | 30 VAC | USB-A (USB TYPE-A) | Phosphor Bronze | Gold | 1500 | Solder | 4 | Black | USB 2.0 | UL94 V-0 | Receptacle | Shielded |
