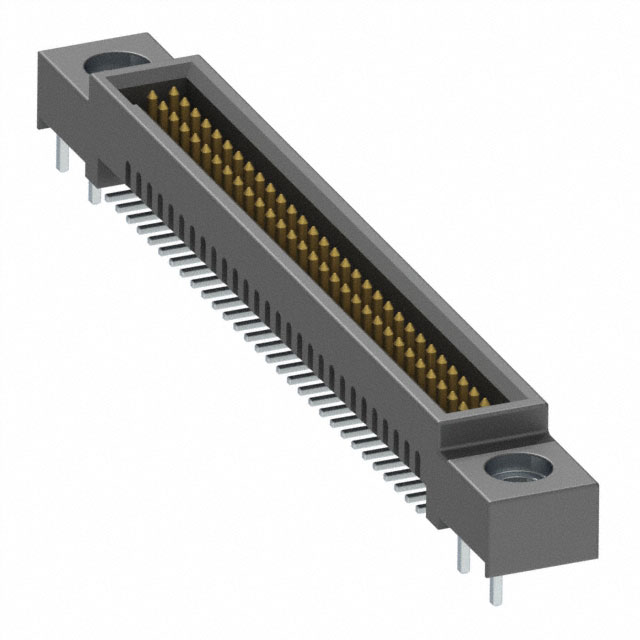

TFM-130-02-S-D-DS

Active

Samtec Inc.

CONN HEADER SMD 60POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-130-02-S-D-DS

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Mating Flange
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-130 Series

...

Part	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Type	Current Rating (Amps)	Number of Positions	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Material	Contact Material	Style	Number of Rows	Mounting Type	Termination	Connector Type	Shrouding	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Features	Contact Length - Post	Contact Length - Post [x]
Samtec Inc. TFM-130-02-S-D	5.6 mm	0.22 in	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2.9 A	60	3.33 mm	0.131 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Surface Mount	Solder	Header	Shrouded - 4 Wall	All
Samtec Inc. TFM-130-01-F-D-RA	5.72 mm	0.225 in	3 µin	0.076 µm	UL94 V-0	Male Pin	2.9 A	60	3.61 mm	0.142 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Through Hole Right Angle	Solder	Header	Shrouded - 4 Wall	All	0.075 in	1.91 mm
Samtec Inc. TFM-130-32-SM-D-LC	11.05 mm	0.435 in	30 Áin	0.76 Ám	UL94 V-0	Male Pin	3.2 A	60	3.53 mm	0.139 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Surface Mount	Solder	Header	Shrouded - 4 Wall	All
Samtec Inc. TFM-130-02-S-D-DS	5.6 mm	0.22 in	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2.9 A	60	3.33 mm	0.131 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Surface Mount	Solder	Header	Shrouded - 4 Wall	All			Mating Flange
Samtec Inc. TFM-130-02-S-D-P-TR	5.6 mm	0.22 in	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2.9 A	60	3.33 mm	0.131 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Surface Mount	Solder	Header	Shrouded - 4 Wall	All			Pick and Place
Samtec Inc. TFM-130-01-S-D-RA	5.72 mm	0.225 in	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2.9 A	60	3.61 mm	0.142 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Through Hole Right Angle	Solder	Header	Shrouded - 4 Wall	All	0.075 in	1.91 mm
Samtec Inc. TFM-130-21-F-D-LC	9.14 mm	0.36 in	3 µin	0.076 µm	UL94 V-0	Male Pin	2.9 A	60	3.53 mm	0.139 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Through Hole	Solder	Header	Shrouded - 4 Wall	All		2.03 mm		0.08 in
Samtec Inc. TFM-130-01-F-D-A-K	5.6 mm	0.22 in	3 µin	0.076 µm	UL94 V-0	Male Pin	2.9 A	60	3.33 mm	0.131 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Through Hole	Solder	Header	Shrouded - 4 Wall	All	0.078 in		Board Guide Pick and Place		1.98 mm
Samtec Inc. TFM-130-22-L-D-A-P-TR	9.14 mm	0.36 in	15 µin	0.38 µm	UL94 V-0	Male Pin	2.9 A	60	3.53 mm	0.139 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Surface Mount	Solder	Header	Shrouded - 4 Wall	All			Board Guide Pick and Place
Samtec Inc. TFM-130-03-S-D-WT	5.6 mm	0.22 in	30 Áin	0.76 Ám	UL94 V-0	Male Pin	2.9 A	60	3.53 mm	0.139 in	0.05 in	1.27 mm	Gold	Black	Tin	Square	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Push-Pull	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board to Board Cable	2	Through Hole	Solder	Header	Shrouded - 4 Wall	All		2.82 mm	Solder Retention	0.111 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.37

Description

General part information

TFM-130 Series

Connector Header Surface Mount 60 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
