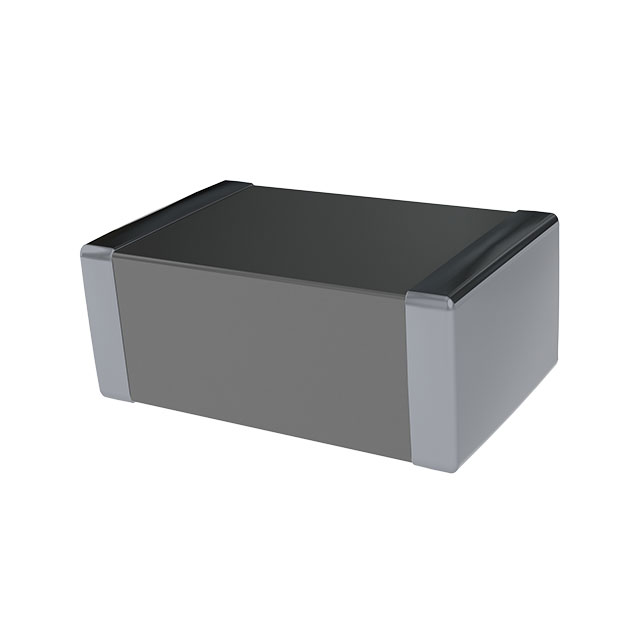

VE0603K300R011

Active

KEMET

VARISTOR, AEC-Q200, MLV, 35V, 0603

Search across all available documentation for this part.

Active

KEMET

VARISTOR, AEC-Q200, MLV, 35V, 0603

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR, AEC-Q200, MLV, 40V, 0603

Part	Operating Temperature [Min]	Operating Temperature [Max]	Maximum DC Volts [Max]	Varistor Voltage (Typ)	Mounting Type	Maximum AC Volts [Max]	Qualification	Varistor Voltage (Max)	Energy	Package / Case	Current - Surge	Capacitance @ Frequency	Number of Circuits	Grade	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]
KEMET VE0603K300R014	-55 °C	150 °C	18 V	22 V	Surface Mount	14 V	AEC-Q200	24.2 V	0.3 J	0603 (1608 Metric)	30 A	195 pF	1	Automotive	19.8 V
KEMET VE0603K300R011	-55 °C	150 °C	14 V	18 V	Surface Mount	11 V	AEC-Q200		0.2 J	0603 (1608 Metric)	30 A	210 pF	1	Automotive	16.2 V	19.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 V 30 A Varistor 1 Circuit Surface Mount 0603 (1608 Metric)
