EC3AB24H

Active

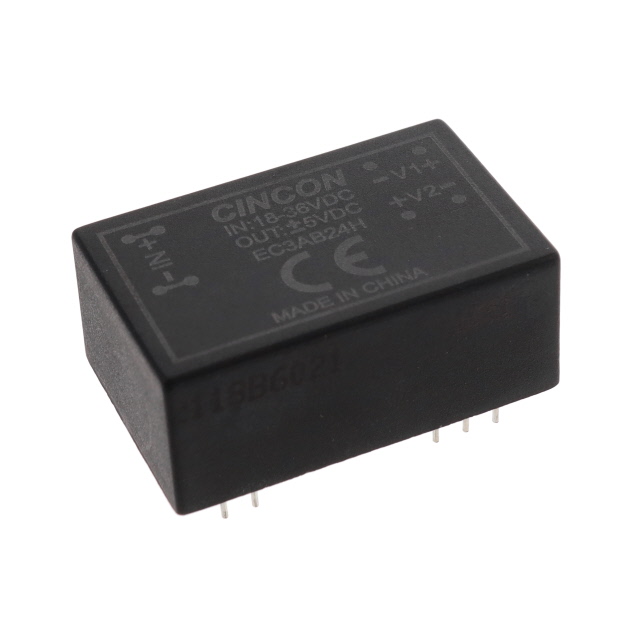

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 3 WATT, 2:1 INPUT RANGE, 3KVDC MIN. ISOLATION, NON-CONDUCTIVE BLACK PLASTIC, 18-36VDC INPUT, +/-5VDC OUTPUT, DIP-24

Find alt

Alpha

EC3AB24H

Active

Cincon Electronics Co. LTD

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 3 WATT, 2:1 INPUT RANGE, 3KVDC MIN. ISOLATION, NON-CONDUCTIVE BLACK PLASTIC, 18-36VDC INPUT, +/-5VDC OUTPUT, DIP-24

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

EC3AB Series

Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 18V - 36V Input

Technical Specifications

Parameters and characteristics for this part

Specification	EC3AB24H

Applications	ITE (Commercial)
Approval Agency	cURus, CE
Current - Output (Max)	300 mA
Efficiency	76 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	71 °C
Operating Temperature (Min)	-25 °C
Package Leads	14 Leads
Package Name	24-DIP Module
Power (Watts)	3 W
Size / Dimension Height	0.5 in
Size / Dimension Length	1.25 in
Size / Dimension Width	0.8 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	18 V
Voltage - Isolation	3 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

EC3AB Series

Part	Voltage - Output 1	Type	Applications	Control Features	Efficiency	Package Leads	Package Name	Power (Watts)	Approval Agency	Mounting Type	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Voltage - Input (Max)	Number of Outputs	Current - Output (Max)	Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Min)	Voltage - Isolation	Voltage - Output 2
Cincon Electronics Co. LTD EC3AB17MS	3.3 V	Isolated Module	ITE (Commercial)	Active High Enable	72 %	18 Leads	24-SMD Module	1.98 W	CE cURus	Surface Mount	0.8 in	0.55 in	1.25 in	18 V	1	600 mA	Adjustable Output Remote On/Off	71 °C	-25 °C	9 V	500 V
Cincon Electronics Co. LTD EC3AB27HMT	3.3 V	Isolated Module	ITE (Commercial)	Active High Enable	74 %	11 Leads	24-DIP Module	1.98 W	CE cURus	Through Hole	0.8 in	0.5 in	1.25 in	36 V	1	600 mA	Adjustable Output Remote On/Off	71 °C	-25 °C	18 V	1500 Vrns
Cincon Electronics Co. LTD EC3AB24HMS	5 V	Isolated Module	ITE (Commercial)	Active High Enable	76 %	18 Leads	24-SMD Module	3 W	CE cURus	Surface Mount	0.8 in	0.55 in	1.25 in	36 V	2	300 mA	Adjustable Output Remote On/Off	71 °C	-25 °C	18 V	1500 Vrns	-5 V
Cincon Electronics Co. LTD EC3AB27HM	3.3 V	Isolated Module	ITE (Commercial)		74 %	14 Leads	24-DIP Module	2 w	CE cURus	Through Hole	0.8 in	0.5 in	1.25 in	36 V	1	600 mA	SCP	71 °C	-25 °C	18 V	1500 Vrns
Cincon Electronics Co. LTD EC3AB35M	12 V	Isolated Module	ITE (Commercial)		76 %	14 Leads	24-DIP Module	3 W		Through Hole	0.8 in	0.5 in	1.25 in	72 V	2	125 mA	SCP	71 °C	-25 °C	36 V	500 V	-12 V
Cincon Electronics Co. LTD EC3AB11MS	5 V	Isolated Module	ITE (Commercial)	Active High Enable	76 %	18 Leads	24-SMD Module	3 W	CE cURus	Surface Mount	0.8 in	0.55 in	1.25 in	18 V	1	600 mA	Adjustable Output Remote On/Off	71 °C	-25 °C	9 V	500 V
Cincon Electronics Co. LTD EC3AB33M	15 V	Isolated Module	ITE (Commercial)		77 %	14 Leads	24-DIP Module	3 W		Through Hole	0.8 in	0.5 in	1.25 in	72 V	1	200 mA	SCP	71 °C	-25 °C	36 V	500 V
Cincon Electronics Co. LTD EC3AB23	15 V	Isolated Module	ITE (Commercial)		80 %	14 Leads	24-DIP Module	3 W		Through Hole	0.8 in	0.5 in	1.25 in	36 V	1	200 mA	SCP	71 °C	-25 °C	18 V	500 V
Cincon Electronics Co. LTD EC3AB24H	5 V	Isolated Module	ITE (Commercial)		76 %	14 Leads	24-DIP Module	3 W	CE cURus	Through Hole	0.8 in	0.5 in	1.25 in	36 V	2	300 mA	SCP	71 °C	-25 °C	18 V	3 kV	-5 V
Cincon Electronics Co. LTD EC3AB34MS	5 V	Isolated Module	ITE (Commercial)	Active High Enable	78 %	18 Leads	24-SMD Module	3 W	CE cURus	Surface Mount	0.8 in	0.55 in	1.25 in	72 V	2	300 mA	Adjustable Output Remote On/Off	71 °C	-25 °C	36 V	500 V	-5 V
