SSB42

Obsolete

TE Connectivity Raychem Cable Protection

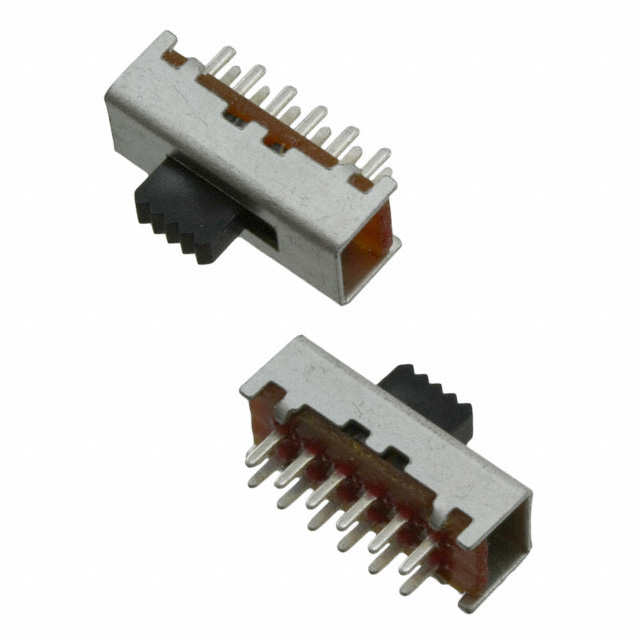

SWITCH SLIDE 4PDT 100MA 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAlcoswitch Slide Switches Catalog

SSB42

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE 4PDT 100MA 30V

Deep-Dive with AI

DocumentsAlcoswitch Slide Switches Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSB42

Actuator Length [x]	3 mm
Actuator Material	Polyoxymethylene (Acetal) (POM)
Actuator Type	Standard
Circuit	4PDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Shorting
Current Rating (Amps)	100 mA
Features	Epoxy Sealed Terminals
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Operating Force	0.25 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Switch Travel	2 mm
Termination Style	PC Pin
Voltage Rating - DC	30 V

SSB Series

Part	Switch Function	Operating Force	Termination Style	Contact Timing	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Features	Contact Material	Mounting Type	Contact Finish	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Voltage Rating - DC	Actuator Material	Actuator Length [z]	Mechanical Life	Actuator Length [x]	Type	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Color	Total Length Recovered	Total Length Recovered	Total Length Supplied	Total Length Supplied	Material	Small Diameter Supplied [diameter]	Small Diameter Supplied
TE Connectivity Raychem Cable Protection SSB12G	On-On	0.25 kgf	PC Pin	Shorting	2 mm	85 °C	-20 C	SPDT	Epoxy Sealed Terminals	Copper Alloy	Through Hole	Gold	Standard	20 V	0.4 VA	20 V	Polyoxymethylene (Acetal) (POM)	1.09 mm	10000 Steps
TE Connectivity Raychem Cable Protection SSB12RG	On-On	0.25 kgf	PC Pin	Shorting	2 mm	85 °C	-20 C	SPDT	Epoxy Sealed Terminals	Copper Alloy	Through Hole Right Angle	Gold	Standard	20 V	0.4 VA	20 V	Polyoxymethylene (Acetal) (POM)		10000 Steps	4.29 mm
TE Connectivity Raychem Cable Protection SSB22G	On-On	0.25 kgf	PC Pin	Shorting	2 mm	85 °C	-20 C	DPDT	Epoxy Sealed Terminals	Copper Alloy	Through Hole	Gold	Standard	20 V	0.4 VA	20 V	Polyoxymethylene (Acetal) (POM)		10000 Steps
TE Connectivity Raychem Cable Protection SSB-1202FR-CS-2065																					Boot Transition - Breakout 2:1
TE Connectivity Raychem Cable Protection SSB-1202FR/ROUND-BASE/NS									Abrasion Resistant Corrosion Resistant Flame Retardant Round Base Weather Resistant												Boot Transition - Breakout 2:1	0.5 in	12.7 mm	1.6 in	40.64 mm	3.81 mm	0.15 "	50.8 mm	2 in	Black	4.09 in	103.89 mm	3.14 in	79.76 mm	Polyolefin (PO) Semi-Rigid	0.5 in	12.7 mm
TE Connectivity Raychem Cable Protection SSB42	On-On	0.25 kgf	PC Pin	Shorting	2 mm	85 °C	-20 C	4PDT	Epoxy Sealed Terminals	Copper Alloy	Through Hole	Silver	Standard		100 mA	30 V	Polyoxymethylene (Acetal) (POM)		10000 Steps	3 mm
TE Connectivity Raychem Cable Protection SSB22	On-On	0.25 kgf	PC Pin	Shorting	2 mm	85 °C	-20 C	DPDT	Epoxy Sealed Terminals	Copper Alloy	Through Hole	Silver	Standard		100 mA	30 V	Polyoxymethylene (Acetal) (POM)		10000 Steps
TE Connectivity Raychem Cable Protection SSB-1202FR/NM									Abrasion Resistant Adhesive Coating Corrosion Resistant Flame Retardant No Markings Weather Resistant												Boot Transition - Breakout 2:1	0.5 in	12.7 mm	1.6 in	40.64 mm	3.81 mm	0.15 "	50.8 mm	2 in	Black	4.09 in	103.89 mm	3.14 in	79.76 mm	Polyolefin (PO) Semi-Rigid	0.5 in	12.7 mm
TE Connectivity Raychem Cable Protection SSB12	On-On	0.25 kgf	PC Pin	Shorting	2 mm	85 °C	-20 C	SPDT	Epoxy Sealed Terminals	Copper Alloy	Through Hole	Silver	Standard		100 mA	30 V	Polyoxymethylene (Acetal) (POM)	1.09 mm	10000 Steps
TE Connectivity Raychem Cable Protection SSB12R	On-On	0.25 kgf	PC Pin	Shorting	2 mm	85 °C	-20 C	SPDT	Epoxy Sealed Terminals	Copper Alloy	Through Hole Right Angle	Silver	Standard		100 mA	30 V	Polyoxymethylene (Acetal) (POM)		10000 Steps	4.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSB Series

Slide Switch 4PDT Through Hole

Documents

Technical documentation and resources

Alcoswitch Slide Switches Catalog

Datasheet
